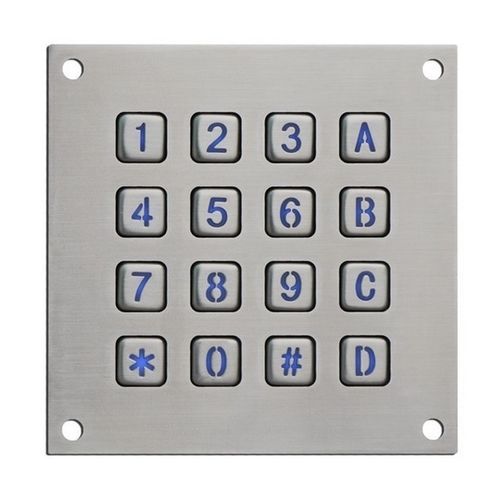

16-key keypad CK-KE113113-BL

panel-mountrubber304 stainless steel

Features

• Front mounting panel with pre-drilled mounting holes
• LED backlight for visibility in low-light or dark environments
• 16 keys; characters customizable (laser-etched; optional raised characters or braille dots)
• IP65 protection against dust and water; IK09 vandal-resistant front panel

Description
The CK-KE113113-BL is a compact, panel-mounted 16-key industrial backlit keypad engineered for kiosks, charging stations and other demanding public-facing or industrial environments. The front panel is 1.5 mm brushed 304 stainless steel with pre-drilled mounting holes and an internal one-piece full rubber seal for moisture protection. Carbon-contact key switches with 2.0 mm travel provide clear tactile feedback. Characters are laser-etched to resist wear. The integrated LED backlight ensures reliable key visibility in dark conditions. Extensive customization is supported, including multiple languages, special symbols, raised characters and braille dots.

Integration & Reliability
Multiple interfaces: Matrix, USB, PS/2, RS232 with plug-and-play functionality. Broad OS compatibility: Windows (95 through 10), Linux, Unix, Mac OSX, VxWorks and Android. Product passed environmental tests per IEC standards (salt spray, damp heat, dry heat) and is designed for long-term operation with high MTBF and straightforward maintenance procedures.

Technical drawing
Technical drawing image available in the product content on the product page.

Technical specifications

• Model / Item No.: CK-KE113113-BL
• Material / Front panel: 1.5 mm brushed 304 stainless steel
• Protection rating: IP65 (waterproof and dustproof)
• Vandal resistance: IK09
• Keys: 16 keys; characters customizable; laser-etched characters; optional raised characters or braille dots
• Key switch: carbon-contact key switches
• Key travel: 2.0 mm
• Actuation force (description): 0.6 N ±0.1 N
• Actuation force (table entry): 1.0 N ±0.1 N
• Key switch lifetime: 5 million operations
• Lifespan: greater than 6 years
• MTBF: greater than 50,000 hours
• MTTR: less than 30 minutes
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Waterproof rating (table): IP65
• Shock resistance: 3 axis 150 m/s² -11 ms (IEC 60512-4)
• Vibration resistance: 5 Hz - 200 Hz (IEC 60512-4)
• Humidity resistance: 100%
• Electronics level: Industrial level
• Supply voltage: +5 V DC ±5%
• Current rating (description): approx. 120 mA
• Current rating (table entry): approx. 150 mA
• EMC Emission: EN55022(B)
• Salt spray: 96 hours (IEC 60512-6)
• Damp heat test: +40 °C, 21 days (IEC 60512-6)
• Dry heat test: +85 °C, 10 days (IEC 60512-6)
• Gross weight (G.W.): approx. 0.8 kg
• Interfaces: Matrix, USB, PS/2, RS232
• OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
