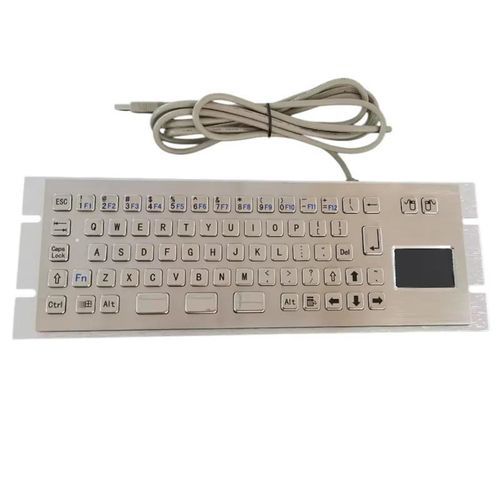

Panel-mount keyboard

with mechanical keyswith touchpadindustrial

Description: Compact panel-mount stainless steel keyboard designed for installations with limited mounting depth. Stainless steel enclosure and keys with an integrated industrial touchpad enable precise cursor control without an external mouse. IP65-rated waterproof and vandal-resistant construction allows use in environments exposed to water, dust or occasional impacts. Available as a fixed panel solution for machines and control cabinets.

Features:

• Compact dimensions for narrow installation spaces
• Integrated industrial touchpad
• IP65 waterproof and dustproof rating
• Customizable layouts and interfaces

Advantages:

• Compact footprint: Designed for applications with limited panel space; fits narrow mounting apertures.
• Customizable: Stainless steel keys can be produced in multiple language layouts; selectable interfaces such as USB or PS/2.
• High ingress protection: IP65 rating resists water and dust, enabling easy cleaning and operation in harsh industrial environments.

Application:

• Industrial control systems
• Kiosks and self-service terminals

Dimensions: 319.0 mm x 109.4 mm (rear mounting panel).

Export certification: RoHS, CE, FCC

Warranty: 12 months

Technical specifications:

• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Waterproof rating: IP65
• Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
• Electronics: Industrial level
• Humidity resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Actuation force: 1.0 N ± 0.1 N
• Key travel: 2.0 mm
• Key switch lifetime: 5 million operations
• Touchpad lifetime: > 10 million operations
• Lifespan: > 3 years
• MTBF: > 50,000 H
• MTTR: < 30 min
• G.W.: appr. 1.8 kg
• Supply voltage: +5 V DC ± 5%
• Current rating: appr. 50 mA
• EMC emission: EN55022(B)
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test: at +40 °C: 21 days, IEC 60512-6
• Dry heat test: at +85 °C: 10 days, IEC 60512-6
• OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OS X, VxWorks, Android
• Touchpad: Industrial-grade touchpad
