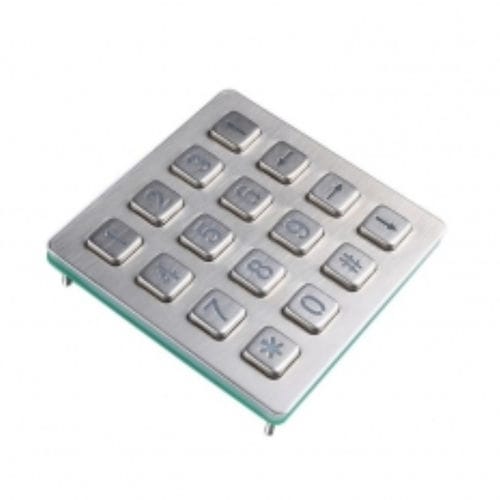

16-key keypad CK-KE9393-BL

panel-mount304 stainless steelIP65

16 keys waterproof and rugged 304 stainless steel industrial backlit keypad, this is a compact, and rugged panel mounted IK09 rated vandalproof keypad for kiosks and charging piles. It is specially designed to meet IP65 specifications, which means it is resistant to harsh environment such as dirt, dust, water, ice, oil, etc. LED backlight design for using in dim or dark environment. An access control keypad and public phone keypad which is widely used globally Access control and public phone. Kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations. 93.0mm x 93.0mm. It's available to produce the keypad's layout into different languages, different letters, customized letters or symbols according to user's specific requirements. RoHS, CE and FCC 12 months. - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP65 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 0.6 N+/-0.1 N - Key Travel: 2.0 mm - Key switch Lifetime: 5 mil. Operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 0.6 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 100 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
