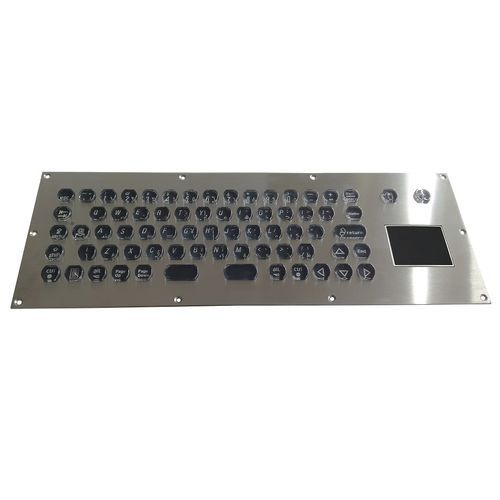

Panel-mount keyboard CK-KB373132-TPPKBL

micro-switchwith touchpadwith mouse

-Stainless steel front mounting panel -One piece complete waterproof rubber inside -Integrated rugged touchpad -Printed letters under the transparent durable polymer keys Description: IP65 rated waterproof and vandal resistant rugged sealed 316L stainless steel industrial keyboard with integrated tough touchpad for marine console simulation or ship cab or fleet application, this is a strong and fully-rugged panel-mounted keyboard. It is specially designed with industrial LED backlight which is available for using in dim or dark sea environment, it is also specially designed with anti-corrosion 316L stainless steel for corrosion spray or salt mist environment, which means it is resistant to extremely harsh marine environment with salIne mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 1.5N+/-0.1N Key Travel: - 0.5mm Key switch Lifetime: - 5 mil. Operations Lifetime of touchpad: - more than 10 mil. slide Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 2.0KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 250mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 Touchpad mouse: - -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Tracking speed: Maximum 1,016 m/sec
