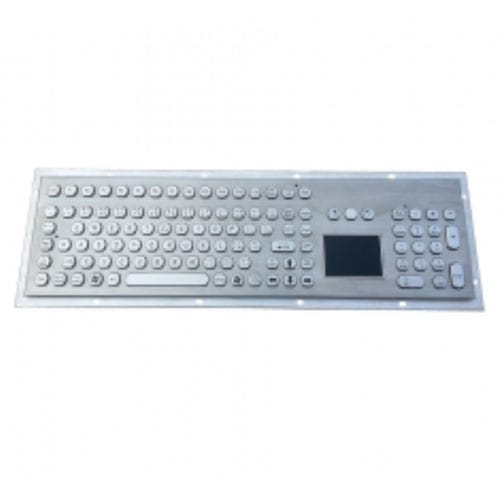

Panel-mount keyboard CK-KB478135-TP

with mechanical keyswith touchpadindustrial

IP65 rated waterproof and brushed 304 stainless steel industrial keyboard with integrated tough touchpad, this is a fully-rugged and fully configuration panel-mounted keyboard. It is specially designed to meet IP65 specifications, which means it is resistant to harsh environment with, dirt, dust, water, ice, low temperature, oil, etc. - Petrol station or gas station: Kiosk, industrial console: Intelligent access control system: Military: - 478.0mm x 135.0mm (front Panel). It's available to produce the keyboard's layout into different languages, different letters, customized letters or symbols according to user's specific requirements. RoHS, CE and FCC 12 months - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP65 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 0.6 N+/-0.1N - Key Travel: 2.0 mm - Key switch Lifetime: 5 mil. Operations - Lifetime of touchpad: more than 10 mil. slide - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 3.0 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 50mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Touchpad mouse: -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ± 0.25V
