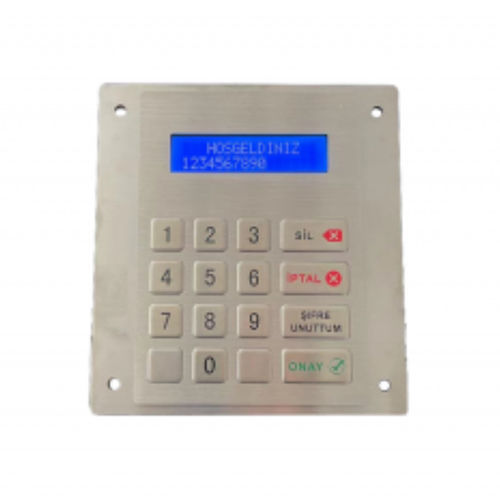

16-key keypad CK-KE140127-LCD

panel-mount304 stainless steelstainless steel

FEATURES: -Stainless steel rear mounting panel -With LCD screen -One piece complete waterproof rubber inside -Laser engraving letters -Metal dome key switches -Available for customization 16 keys IP67 rated waterproof and brushed 304 stainless steel keypad and industrial LCD petrol station keypad and kiosk keypad, this is a IK09 rated and fully-rugged panel-mounted keypad for petrol station or gas station or industrial console or mining environment. It is specially designed to meet IP67 specifications, which means it is resistant to harsh environment with, dirt, dust, water, ice, low temperature oil, etc. Petrol station or gas station: Kiosk, industrial console: Intelligent access control system: Military: 140.0mm x 127.0mm (rear panel). It's available to produce the keypad's layout into different languages, different letters, customized letters or symbols according to user's specific requirements. RoHS, CE and FCC 12 months - Operating Temperature: 0 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.2 N - Key Travel: 0.5 mm - Key switch Lifetime: 5 mil. Operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 1.0 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 100 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
