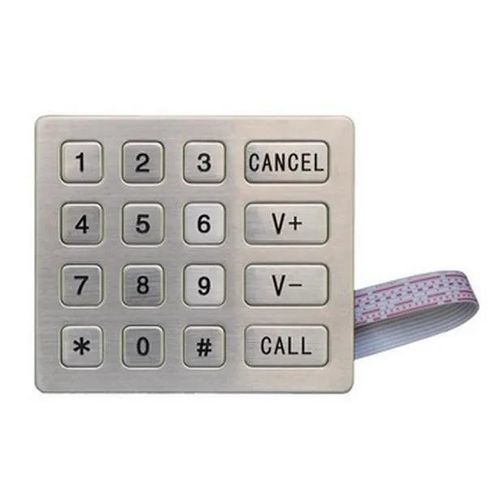

16-key keypad CK-KE10793

panel-mount304 stainless steelUSB

Overview
The CK-KE10793 is a panel-mounted 16-key numeric keypad designed for industrial and public applications requiring waterproof, dustproof and vandal-resistant input devices.

Short description
Compact and robust, the CK-KE10793 features a 1.5mm brushed 304 stainless steel front panel, one-piece internal rubber sealing and metal dome key switches. It supports multiple interfaces and optional accessibility features. 1-year limited warranty.

Core Product Features

• Construction: 1.5mm brushed 304 stainless steel front panel with rear mounting screws; IP65 ingress protection; IK09 vandal resistance.
• Sealing: one-piece internal rubber gasket for complete waterproof protection.
• Key legends: laser-etched characters with ink filling for long-term legibility.
• Key mechanism: metal dome switches, 0.5mm key travel, 1.5 N ± 0.1 N actuation force, super-flat surface for easy cleaning.
• Interfaces & customization: Matrix, USB, PS/2, RS232; customizable legends, languages, raised letters and braille.

Applicable Industries & Scenarios

• Public service kiosks: universities, malls, hotels, banks, airports, rail stations; ticketing machines, ATMs/CDMs, pay stations.
• Industrial use: control consoles, industrial automation, paper mills, clean rooms, oil & gas facilities, warehouses.
• Special applications: EV charging stations, public safety equipment, outdoor terminals and other harsh-environment installations.

Key Product Advantages

• Durability: metal dome PCB, key lifetime 5 million operations, expected lifespan > 6 years.
• Environmental range: operating -20 °C to +60 °C; storage -30 °C to +70 °C. Passed saline mist, damp heat and dry heat tests (IEC).
• Electrical & compliance: +5V DC ±5%, current ≈20 mA; EMC EN55022(B), RoHS, CE, FCC.
• User-friendly: plug-and-play interfaces, easy-to-clean flat front, optional accessibility features.

Technical drawing
Technical drawing and layout images are provided on the product page for installation reference.

Technical data
Operating Temperature: -20 °C to +60 °C
Storage Temperature: -30 °C to +70 °C
Waterproof rate: IP65
Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Electronics: Industrial level
Humidity Resistant: 100%
Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
Actuation Force: 1.5 N ± 0.1 N
Key Travel: 0.5 mm
Key switch Lifetime: 5 million operations
Lifespan: > 6 years
MTBF: > 50000 H
MTTR: < 30 min
G.W.: appr. 0.7 KGs
Supply Voltage: +5V DC ±5%
Current Rating: appr. 20 mA
EMC Emission: EN55022(B)
Saline mist: 96 hours, IEC 60512-6
Damp heat test: at +40 °C: 21 days, IEC 60512-6
Dry heat test: at +85 °C: 10 days, IEC 60512-6
OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android

Technical specifications

• Model: CK-KE10793
• Keys: 16 keys numeric
• Front panel material: 1.5mm brushed 304 stainless steel
• Ingress protection: IP65
• Vandal resistance: IK09
• Sealing: one-piece internal rubber
• Key technology: metal dome switches
• Key travel: 0.5 mm
• Actuation force: 1.5 N ± 0.1 N
• Key lifetime: 5 million operations
• Supply voltage: +5V DC ±5%
• Current: approx. 20 mA
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Compliance: EN55022(B), RoHS, CE, FCC
• Weight (G.W.): approx. 0.7 kg
