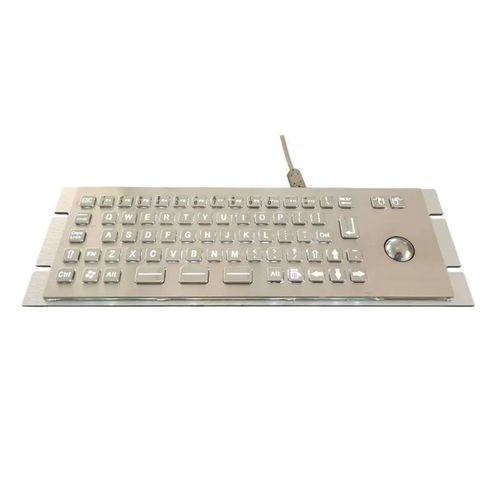

Panel-mount keyboard CK-KB17IN1-38TB

with mechanical keyswith trackballindustrial

Item No.
CK-KB17IN1-38TB

Features

• Mini dimensions for narrow installation places
• 38.0mm stainless steel laser trackball with >1200 DPI resolution
• IP67 waterproof and dustproof
• Customizable language layouts and interfaces
• LED backlight

Description
Compact dimensions make this keyboard suitable for installations with limited space. The IP67 rating provides protection against dust and water, enabling reliable operation in harsh environments with dirt, dust, water, ice, low temperature and oil. LED backlight allows use in dark or dimly lit locations. Language layouts and interface options can be customized to match system requirements.

Advantages

• High-resolution integrated trackball: 38.0mm stainless steel laser trackball with >1200 DPI and high sensitivity
• Compact design: engineered for narrow areas while retaining full keyboard functionality
• Two-in-one input: industrial stainless steel keyboard with integrated trackball for complete pointing and typing control
• Robust protection: IP67 waterproof/dustproof for outdoor and heavy-duty applications; resistant to contaminants and easy to clean

Application

• Industrial control
• Kiosks

Dimensions
319.0mm x 109.4mm (Rear Mounting Panel)

Export certification
RoHS, CE, FCC

Warranty
12 months

Technical specifications

• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -30 °C to +70 °C
• Waterproof rate: IP67
• Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
• Electronics: Industrial level
• Humidity Resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Actuation Force: 1.0 N +/- 0.1 N
• Key Travel: 2.0 mm
• Key switch Lifetime: 5 million operations
• Lifetime of trackball mouse: more than 10 million operations
• Lifespan: > 3 years
• MTBF: > 50000 H
• MTTR: < 30 min
• G.W.: appr. 2.0 KGs
• Supply Voltage: +5V DC +/- 5%
• Current Rating: appr. 200 mA
• EMC Emission: EN55022(B)
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test: at +40 °C: 21 days, IEC 60512-6
• Dry heat test: at +85 °C: 10 days, IEC 60512-6
• OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
• Trackball mouse: 38.0mm laser trackball with >1200 DPI resolution and more than 10 million cycle lifetime
