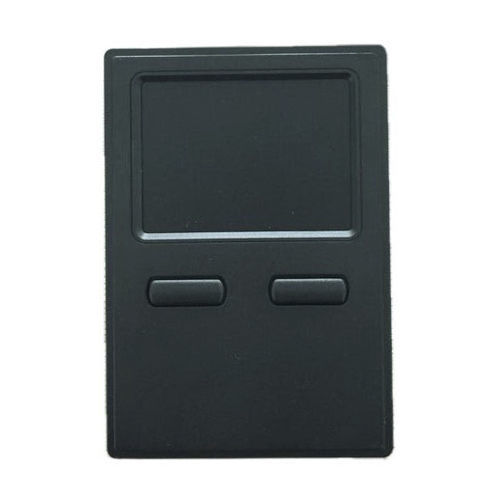

Industrial touchpad CK-TO11580-PSDT

ruggedUSB

Industrial plastic tough touchpad for industrial console or kiosk, this is a mobile desktop touchpad. FEATURES: -Movable desktop solution. -2 mouse buttons with left clicking, right clicking. -Carbon connecting key switches with 2.0mm key travel with excellent tactile feeling. APPLICABLE INDUSTRIES: Industrial console, werehouses, clean room , operation rooms, industrial automation, etc. MECHANICAL DATA: -Industrial PCB. -Actuation Force: 0.6N+/-0.1N. -Key Travel: 2.0mm. -Key switch Lifetime: 3 mil. Operations. -Lifetime of touchpad: more than 10 mil. slide. -Lifespan: > 3 years. -MTBF >50000H. -MTTR <30min. -G.W.: appr. 0.3KGs. -Dimensions: 115.0mm x 80.0mm. ELECTRICAL DATA: -Operating Temperature: -20 °C to +60 °C. -Storage Temperature: -30 °C to +70 °C. -Supply Voltage: +5V DC +/- 5%. -Current Rating: appr. 20mA. -EMC Emission:EN55022(B). -OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android. ELECTRICAL DATA FOR TOUCHPAD MOUSE: -Mutual Capacitance sensing. -X/Y position sensing resolution: 40 counts/mm. -X/Y position reporting: Relative. -Tracking speed: Maximum 1,016 m/sec. -Power supply voltage: 5 VDC ± 0.25V. -Current rating (active mode): 17 mA.
