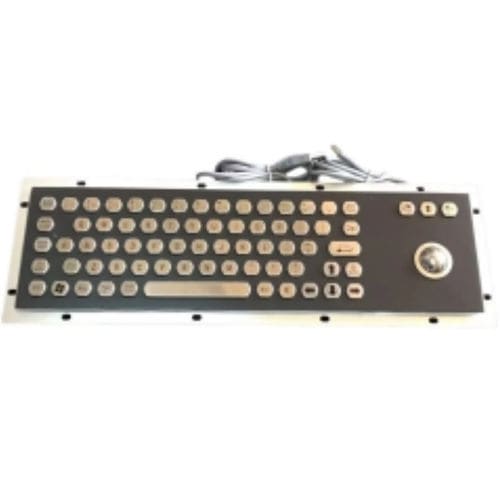

Panel-mount keyboard CK-KB370110-25TBBK

carbon contactwith trackballwith mouse

-Stainless steel rear mounting panel -One piece complete waterproof rubber inside -25.0mm stainless steel laser trackball with +1200DPI resolution -Laser engraving letters -Carbon connecting key switches -Available for customization Description: IP67 rated waterproof and vandal resistant brushed 304 stainless steel industrial keyboard with integrated 25.0mm laser trackball, this is a IK09 rated and fully-rugged panel-mounted keyboard for mining environment or marine console or industrial console. It is specially designed with black electroplated surface treatment, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 0.6N+/-0.1N Key Travel: - 2.0mm Key switch Lifetime: - 5 mil. Operations Lifetime of trackball mouse: - more than 10 mil. operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 2.0KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 80mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: - 25.0mm laser trackball with +1200DPI resolution with more than 10 million cycle lifetime
