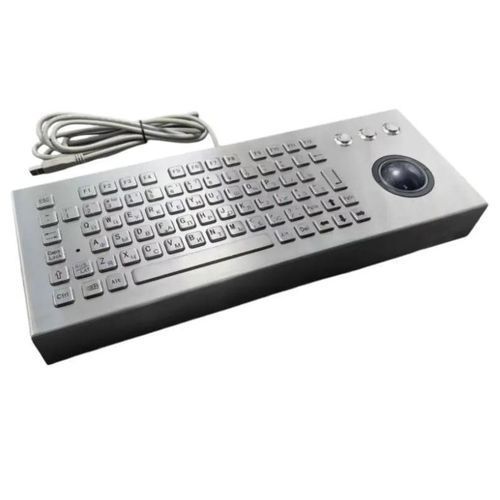

Desktop keyboard CK-KB17IN1-50TBDT

carbon contactwith trackballindustrial

Description
Waterproof, vandal-resistant stainless steel desktop keyboard with industrial-grade integrated 50.0 mm trackball. Anti-explosion design suitable for mining, industrial machinery, marine consoles and military applications.

Features

• Desktop stainless steel keyboard with sealed enclosure
• One-piece waterproof silicone rubber internal lining
• Integrated industrial 50.0 mm rugged trackball
• Laser-engraved key legends
• Carbon connecting key switches

Application

• Military
• Industrial

Advantages

• Fully sealed stainless steel enclosure for extreme conditions: resistant to rain, oil, dirt, impacts and heavy-metal strikes
• 50 mm industrial trackball: rugged mechanical ball with precise operation and low-noise bearing technology
• Removable desktop design for easy relocation of the control surface

Dimensions
380.0 mm x 145.0 mm.

Export certification
RoHS, CE and FCC.

Warranty
12 months.

Technical data
Operating Temperature: -20 °C to +60 °C
Storage Temperature: -30 °C to +70 °C
Waterproof rate: IP65
Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Electronics: Industrial level
Humidity Resistant: 100%
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
Actuation Force: 0.6 N +/-0.1N
Key Travel: 2.0 mm
Key switch Lifetime: 5 mil. Operations
Lifetime of touchpad: more than 10 mil. slide
Lifespan: > 3 years
MTBF: >50000H
MTTR: <30min
G.W.: appr. 3.0 KGs
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 50mA
EMC Emission: EN55022(B)
Saline mist: 96 hours, IEC 60512-6
Damp heat test: at +40º C: 21 days, IEC 60512-6
Dry heat test: at +85º C: 10 days, IEC 60512-6
OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
Trackball mouse: 50.0mm rugged mechanical trackball mouse

Caractéristiques / spécifications techniques

• Item No.: CK-KB17IN1-50TBDT
• Enclosure: full stainless steel, sealed
• Ingress protection: IP65
• Trackball: 50.0 mm rugged mechanical trackball
• Key technology: carbon connecting key switches, laser engraved legends
• Actuation force: 0.6 N +/-0.1N
• Key travel: 2.0 mm
• Key switch lifetime: 5 million operations
• Touchpad lifetime: >10 million slides
• Lifespan: >3 years
• MTBF: >50000 hours
• MTTR: <30 minutes
• Supply voltage: +5V DC +/-5%
• Current rating: approx. 50 mA
• EMC: EN55022(B)
• Environmental tests: saline mist 96h; damp heat at +40°C 21 days; dry heat at +85°C 10 days (IEC 60512-6)
• Shock resistance: 3 axis 150 m/s² -11 ms (IEC 60512-4)
• Vibration resistance: 5–200 Hz (IEC 60512-4)
• Humidity resistant: 100%
• Gross weight (approx.): 3.0 KGs
• Warranty: 12 months
• Certifications: RoHS, CE, FCC
• OS compatibility: Windows, Linux, Unix, Mac OSX, VxWorks, Android
