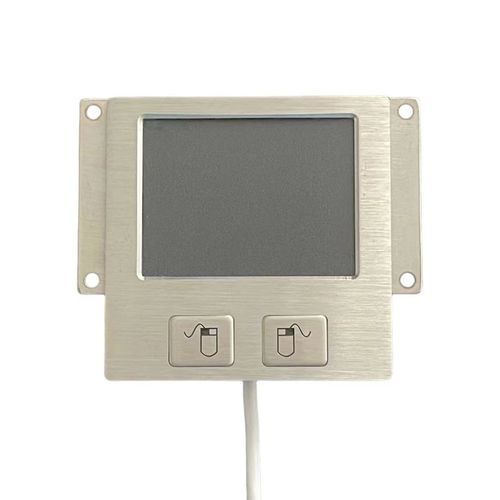

Industrial touchpad CK-TO8080-TP

stainless steelvandal-proofIP65

-1.5mm thickness stainless steel rear panel mounting panel with mounting holes. -One piece complete waterproofrubber inside -Rugged tough touchpad -Black eletroplated or original stainless steel surface optional Description: IP65 rated waterproof and vandal resistant rugged brushed stainless steel industrial rugged tough touchpad for console simulation or mining environment or industrial console, this is a rugged sealed panel-mounted touchpad. It is specially designed which can resist harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 2.0N+/-0.1N Key Travel: - 0.5mm Key switch Lifetime: - 5 mil. Operations Lifetime of touchpad: - more than 10 mil. slide Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 0.6KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 20mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 Touchpad mouse: - -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ± 0.25V
