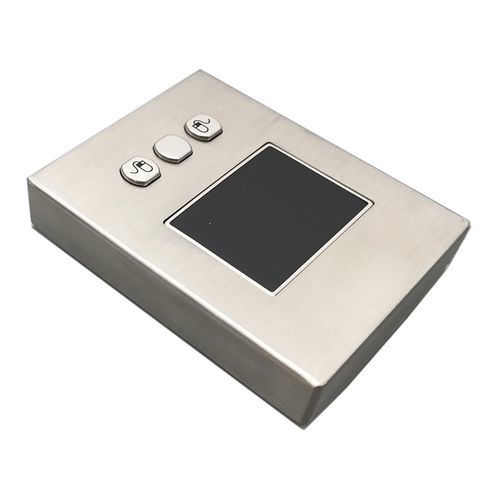

Industrial touchpad CK-TO134105-TPDT

stainless steelvandal-proofIP65

-Movable desktop solution -One piece complete waterproof rubber inside -Rugged tough touchpad -Laser-etched letters -Carbon connecting key switches Description: IP65 rated waterproof and vandal resistant rugged brushed 316L stainless steel industrial rugged tough touchpad for marine console simulation or mining environment or industrial console, this is a rugged sealed mobile desktop touchpad. It is specially designed to meet IP65 specifications and it’s anti-corrosion 316L stainless steel which covered the shortage of normal 304 stainless steel for corrosion spray or salt mist environment, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 0.6N+/-0.1N Key Travel: - 2.0mm Key switch Lifetime: - 5 mil. Operations Lifetime of touchpad: - more than 10 mil. slide Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 0.8KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 20mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec
