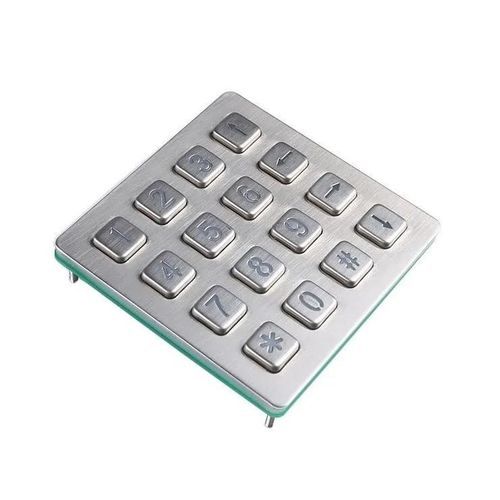

16-key keypad CK-KE9393-BL

panel-mountbrushed stainless steel304 stainless steel

Description: 16-key waterproof and vandal-resistant brushed 304 stainless steel industrial backlit keypad. This compact, panel-mounted, IK09-rated vandal-proof unit is designed for kiosks, charging piles and public terminals. It conforms to IP65 for resistance against dirt, dust, water, ice and oil. LED backlight enables operation in low-light conditions. Commonly used as access control and public phone keypad worldwide.

Features:

• Panel mounting solution with screws
• One-piece complete rubber inner layer
• Laser-etched characters for long life
• Carbon contact key switches
• Customizable layout and finish

Application:

• Access control systems and public telephones
• Kiosks in universities, shopping malls, hotels, banks, airports, railway stations and other public areas
• Ticket vending machines
• Fuel/charging stations

Dimensions: 93.0 mm x 93.0 mm.

Export certification: RoHS, CE and FCC
Warranty: 12 months

Technical specifications:

• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Waterproof rating: IP65
• Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
• Electronics: Industrial level
• Humidity resistance: 100%
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Actuation force: 0.6 N ±0.1 N
• Key travel: 2.0 mm
• Key switch lifetime: 5 million operations
• Lifespan: > 3 years
• MTBF: > 50000 h
• MTTR: < 30 min
• G.W.: approx. 0.6 kg
• Supply voltage: +5 V DC ±5%
• Current rating: approx. 100 mA
• EMC emission: EN55022 (B)
• Salt mist: 96 hours, IEC 60512-6
• Damp heat test: at +40 °C: 21 days, IEC 60512-6
• Dry heat test: at +85 °C: 10 days, IEC 60512-6
• OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
• Item No.: CK-KE9393-BL
