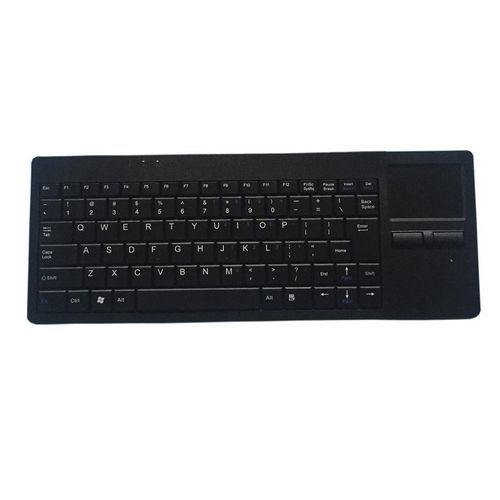

Desktop keyboard CK-KB310115-TPPS

with mechanical keyswith touchpadindustrial

Industrial level keyboard with integrated tough touchpad. FEATURES: -Movable desktop solution. -Carbon connecting key switches with 2.0mm key travel with excellent tactile feeling. APPLICABLE INDUSTRIES: Paper manufacturing industry, clean room, operation rooms, industrial automation, etc. -Key Travel: 2.0mm. -Key switch Lifetime: 3 mil. Operations. -Lifetime of touchpad: more than 10 mil. slide. -Lifespan: > 3 years. -MTBF >50000H. -MTTR <30min. -G.W.: appr. 0.5KGs. -Dimensions: 310.0mm x 115.0mm (front Panel). ELECTRICAL DATA: -Operating Temperature: -20 °C to +60 °C. -Storage Temperature: -30 °C to +70 °C. -Supply Voltage: +5V DC +/- 5%. -Current Rating: appr. 50mA. -EMC Emission:EN55022(B). -OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android. ELECTRICAL DATA FOR TOUCHPAD MOUSE: -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ±0.25V -Current rating (active mode): 17 mA
