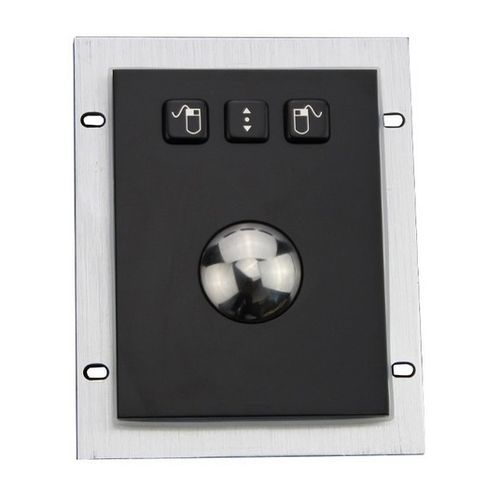

Laser trackball CK-TR11080-38BK

panel-mount38 mmwaterproof

-Stainless steel rear mounting panel -One piece complete waterproof rubber inside -38.0mm laser trackball with +1200DPI resolution -Laser-etched letters -Rate Sensitive Dynamic Resolution Description: IP67 rated 38.0mm waterproof and vandal resistant rugged brushed 316L stainless steel industrial laser trackball for marine console simulation or mining environment or industrial console, this is a IK09 rated vandal resistant, and rugged sealed panel-mounted trackball. It is specially designed to meet IP67 specifications and it’s anti-corrosion 316L stainless steel which covered the shortage of normal 304 stainless steel for corrosion spray or salt mist environment, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 0.6N+/-0.1N Key Travel: - 2.0mm Key switch Lifetime: - 5 mil. Operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 1.0KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 50mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: - 38.0mm laser trackball with +1200DPI resolution with more than 10 million cycle lifetime
