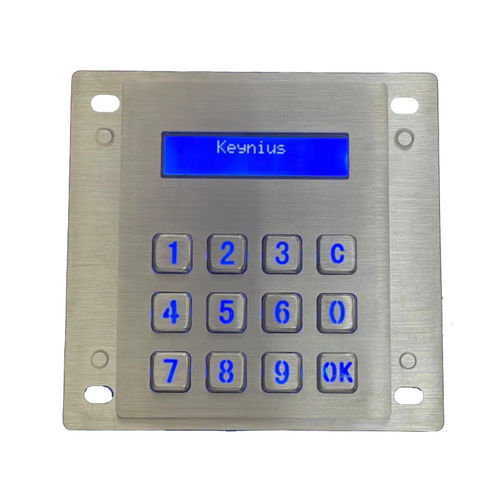

12-key keypad CK-KE11994-LCD

panel-mountstainless steelvandal-proof

12 keys IP67 rated waterproof and vandal resistant brushed stainless steel industrial LCD keypad, This is a IK09 rated and fully-rugged panel-mounted keypad for petrol station or gas station or industrial console or mining environment. Resistant to harsh environment with, dirt, dust, water, ice, low temperature oil, etc. With LED backlight which is available to applicate in dark or dim environment. Advantages: Letters display available: It's integrated LCD screen design which make sure it's visible for the letters that users input, help with the input records and easy for correction. Applicable in dark or dim environment: With LED backlight to overcome the dark or dim environment Cutomizable: It's a customizable keypad in terms of dimensions, key letters, LED backlight color, interface, key assignments, etc. Technical dada: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 1.5N+/-0.1N Key Travel: - 0.5mm Key switch Lifetime: - 5 mil. Operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 0.8KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 150mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
