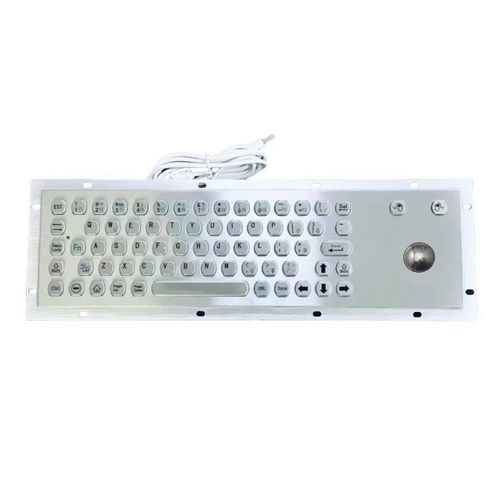

Panel-mount keyboard CK-KB370110-38TB

carbon contactwith trackballwith mouse

-Stainless steel rear mounting panel -38.0mm stainless steel laser trackball with +1200DPI resolution -Laser engraving letters -Carbon connecting key switches -Available for customization Description: IP67 rated waterproof and vandal resistant brushed stainless steel industrial keyboard with integrated 38.0mm laser trackball, this is a IK09 rated and fully-rugged panel-mounted keyboard for mining environment or industrial console. It is specially designed with resistance to harsh environment with, dirt, dust, water, ice, low temperature, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 0.6N+/-0.1N Key Travel: - 2.0mm Key switch Lifetime: - 5 mil. Operations Lifetime of trackball mouse: - more than 10 mil. operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 2.0KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 80mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: - 38.0mm laser trackball with +1200DPI resolution with more than 10 million cycle lifetime
