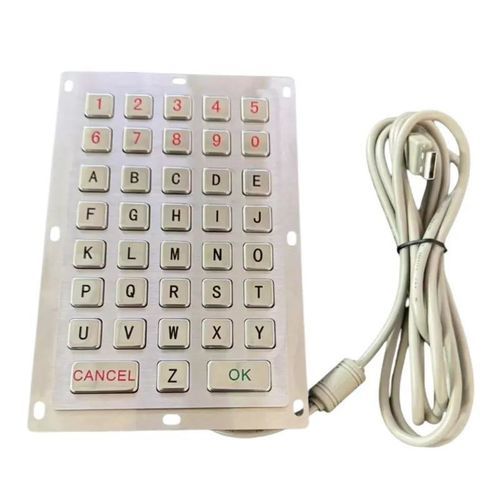

Panel-mount keyboard CK-KB15IN1

carbon contact38-keyfor the petroleum industry

Product overview
The CK-KB15IN1 is a rugged, panel-mounted industrial keyboard engineered for harsh environments. Constructed from brushed 304 stainless steel with sealed internal components, it provides protection against water, dust, oil, extreme temperatures and heavy use. Certified to CE, FCC and RoHS standards and designed for kiosks, industrial consoles, automation systems and public self-service equipment.

Features

• Panel mount / embedded keyboard design
• IP67 waterproof sealing
• IK09 vandal-resistant construction
• Brushed 304 stainless steel front panel
• Laser-engraved characters with special ink filling for durability
• Full silicone rubber internal gasket for complete moisture and dust isolation
• Carbon-contact key switches (mentioned with 2.0mm key travel in key features)
• Key switch lifetime: 5 million operations
• Flexible customization: multiple language layouts, raised letters and braille dots available
• Plug-and-play interfaces: USB or PS/2
• Wide OS compatibility: Windows (95 through 10), Linux, Unix, Mac OSX, VxWorks, Android

Core advantages

• Unmatched durability: MTBF >50,000 hours, service life >3 years
• Environmental resilience: resists salt mist, damp heat, dry heat and 100% humidity
• Easy deployment and low maintenance: rear mounting panel and mean time to repair (MTTR) < 30 minutes

Application examples

• Kiosks in public areas
• Ticket vending machines and ATMs/CDMs
• Industrial automation consoles and control desks
• Gas stations and public safety installations
• Cleanrooms and operating rooms
• Oil & gas facilities and warehouses
• Military and heavy-duty outdoor equipment

Technical specifications

• Model reference: CK-KB15IN1 (manufacturer designation)
• Dimensions (rear mounting panel): 178.0 mm x 118.0 mm
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Waterproof rate: IP67
• Vandal/shock resistance: IK09; shock resistance 3 axis 150 m/s² -11 ms (IEC 60512-4)
• Electronics: industrial level
• Humidity resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz (IEC 60512-4)
• Actuation force: 1.0 N ±0.1 N
• Key travel (technical table): 1.5 mm
• Carbon-contact key switches (text mentions 2.0 mm key travel)
• Key switch lifetime: 5 million operations
• Lifespan: > 3 years
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Gross weight (G.W.): appr. 1.0 KG
• Supply voltage: +5 V DC ±5%
• Current rating: appr. 30 mA
• EMC emission: EN55022 (B)
• Saline mist resistance: 96 hours (IEC 60512-6)
• Damp heat test: at +40 °C for 21 days (IEC 60512-6)
• Dry heat test: at +85 °C for 10 days (IEC 60512-6)
• OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
• Export certifications: RoHS, CE, FCC
• Warranty: 12 months
