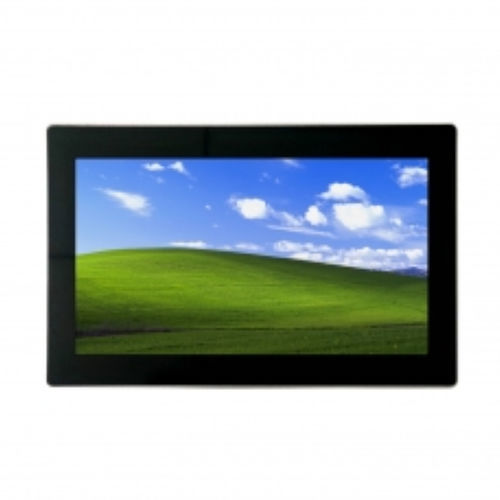

TFT-LCD monitor CK-ME8-OEM

projected capacitive touchscreenmultitouch screenLED backlight

Description: -IP65 waterproof industrial mountable 10.1" WXGA TFT LCD with 1280*800 resolution -DC12V input -Capacitor touch screen, with touch function -With or without tempered glass optional -Integrated aluminum milling panel and sheet metal rear box structure design -Open installation (on the same plane as the cabinet) and VESA wall-mounted installation method -VGA/HDMI multiple signal inputs -Projected multi-point capacitor G+G touch screen, supports USB communication interface -Support Win7, Win8, Win10, Linux, KylinOS, Android, Ubuntu, Debian operating systems Marine console, industrial console: Industrial control and marine control application that resists harsh environments with water, salt mist, humidity, or dirt, with or without touch function optional. - Type: 10.1" WXGA TFT LCD - Resolution ratio: 1280*800 (16:9) - Backlight: WLED - Brightness: 400cd/m² - Contrast ratio: 900:1 (Typ.) - Light source lifespan: 30000H - Response time: 30ms - Color number: 16.7MB - Working area: 217.96mm×136.6mm (H×V) - Type: Projected multi-point capacitive touch screen with 10 points - Total touch points: 10 - Response time: 7-12ms - Touchable by: Fingers, conductive gloves and pen - Refresh frequency: 60Hz - Transmittance: >85% - Supported OS: Win7, Win8, Win10, Linux, KylinOS, Android, Ubuntu, Debian - OSD control: Light-touch switch - OSD language: Support languages of multiple countries according to request - Communication port: USB, DCIN - Video port: VGA & HDMI (DVI optional) - Body: Aluminum milling panel: anodized coating; back cover: SGCC sheet metal rear box structure; grounding isolation protection - Dimensions: 254.3mm×172.3mm×43mm - Mounting window size: 246mm×164mm - Installation: Embedded mounting with clutch or VESA panel mounting - Switch indication: Switches, indicator lights and OSD adjustment buttons are provided on the back of the machine - Weight: 1.22KG - Working temp.: -20~60℃ - Storage temp.: -20~70℃ - Relative humidity: 10% -90%, No Frost - Vibration: 5-500HZ, 1.5G, 0.15mm peak - Impact: 10G (11ms) - Power input: DC12V - Power consumption: 4.8W
