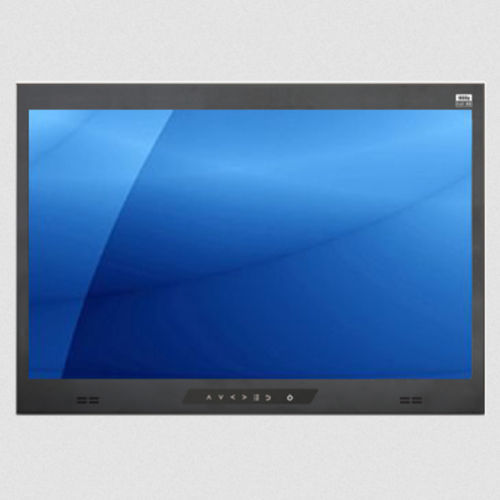

Rack-mount monitor RMW8215

LCD/TFTprojected capacitive touchscreenresistive touch screen

The RMW8215 is an 8U 21.5" rackmount monitor supporting 1920 x 1080 Full HD resolution, VGA + HDMI video input, front OSD functions, and a 100/240VAC power input in a 8U high rackmount enclosure designed for 19" rack cabinets. Options are available for additional inputs, touch screen technology, and DC power input. The 21.5-inch widescreen full HD 1080P industrial monitor is a Flat LCD panel TFT active type digital to digital, which connects to the onboard conversion board. The rackmount monitor offers a 21.5-inch diagonal LCD with 250nit brightness. Its ultra excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1920 x 1080 pixels. It provides a 170 x 160-degree viewing angle for unparalleled viewing abilities. The aspect ratio is a widescreen 16:10 with a 476.64H x 268.11V mm display area and will display 16.7M colors (True color). Option for a Resistive (1-point) or Projected Capacitive (1-point or 10-point) type touch screen is available. The construction of the rugged monitor is constructed of heavy-duty steel and features all-steel construction with a rack-mountable aluminum bezel. RMW8215 comes with a metal ruggedized housing that fits into standard 19" inch cabinets. The rackmount monitor is designed to meet military shock, vibration, and environmental standards. The 21.5-inch LCD monitor comes with an external 100/240VAC auto-switch power input. Option for 12V / 24V / 48V / 125V DC power supply input. The 8U rackmount monitor is ready to mount into the standard 19" rackmount cabinet. It occupies an 8U high rackmount unit.
