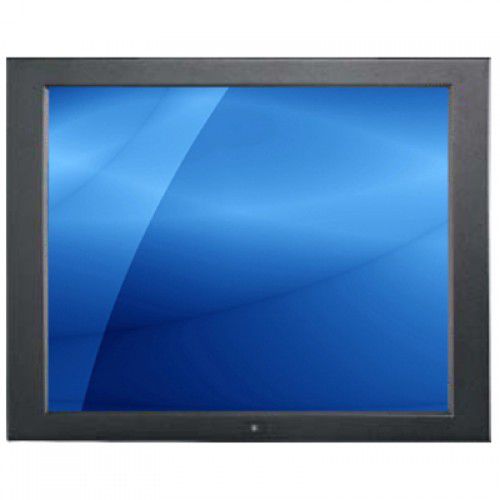

LCD monitor APH8170

touch screenLEDindustrial

The APH8170 is a 17" high brightness sunlight readable monitor supporting 1280 x 1024 resolution, 1000-nits high brightness display, and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH8170 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input. The APH8170 is a 17-inch high-brightness industrial monitor supporting a 1000-nit high-brightness display, LCD LED backlight, and resolution of 1280 x 1024. It is an ideal monitor for outdoor environments or indoors in high-ambient-light conditions. The contrast ratio of 1000:1 along with a viewing angle of 170° x 160° supports a clear image quality of the 337.32 x 270.33 mm active area. With 16.7 million colors, it displays intricate details. The mean time between failures of 50,000 hours ensures it is long-lasting. The option for resistive, capacitive, or projective capacitive type touch screen with a USB port is available for added protection and easy activation. The video input supports VGA + HDMI (no speaker) with options for DP, Audio, 3G/HD/SD-SDI input, and remote control. The power supply uses external auto-sensing 100 to 240VAC, 50/60Hz power adapter with the option for 12V / 24V / 48V / 125V DC power supply.
