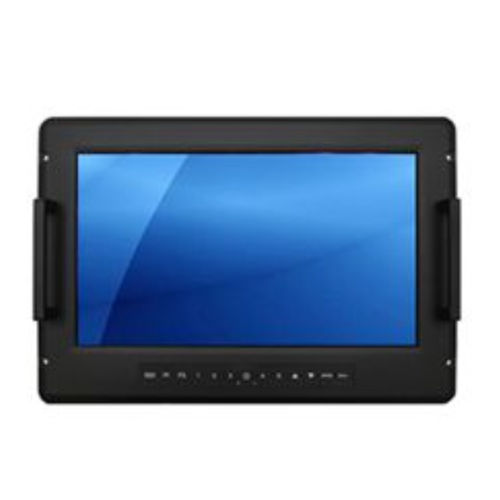

LCD monitor RMW7175

capacitive touch screenLED backlightindustrial

The RMW7175 is a 17.3" rugged military rackmount LCD monitor featuring 1920 x 1200 pixel resolution, 600-nit high brightness display, VGA + DVI input, AR glass, and an IP-rated 8U high rackmount enclosure. Designed for harsh environmental and military applications, this 17.3" industrial LCD monitor features AR glass protection, IP65 rated front bezel, MIL-STD-810G vibration/shock/humidity compliance, and -15°C to 55°C wide range working temperature. Material Heavy-duty steel LCD Panel Brightness (cd/m²): 600 Contrast Ratio (typ.) : 2000:1 Viewing Angle (H/V): 176° x 176° Active Area (mm): 365.76H x 228.6V Pixel Pitch (mm): 0.1905H x 0.1905V Colors: 16.7M, 8-bit Front OSD Buttons OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys) Light Sensor (Option) Dimming light sensor Optical Bonding (Option) Optical bonding Connectors 1 x BNC (option) 1 x 3-pin D38999 power connector w/ power adapter Power Supply Input: DC power with external AC power adapter Power Consumption: 32W (typical) Option for D38999 9 to 36V DC power input or D38999 AC power input Option for MIL-STD-461E power EMI filter Gross Weight 22.04 lb / 10 kg Dimension 18.90"(W) x 12.99"(H) x 4.72"(D) Environmental Option for -20°C to 60°C wide range working temperature Storage Temperature: -30°C to 70°C Operating Humidity: 5% to 95%, non-condensing Dimensions Order Info Downloads Configure Now
