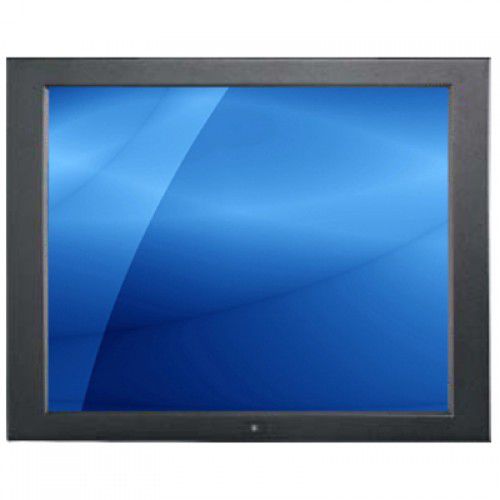

LCD monitor APM5170

touchindustrial17"

The APM5170 is a 17" industrial LCD monitor supporting 1280 x 1024 resolution and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5170 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology, additional input modules, and DC power input. The APM5170 is a 17" panel mount monitor supporting an industrial LED backlight LCD panel displaying high picture quality. The APM5170 features a 2.5" short depth metal rugged construction with a 6mm aluminum front bezel and 3mm protective glass. The option for IP65 / NEMA4 front bezel is available. The LCD panel displays a crisp image of resolution 1280 x 1024, 250-nits brightness, 1000:1 contrast ratio, 16.7 million colors, and an active area of 337.92H x 270.33V mm. The LED backlight is supported by 30,000 hours of MTBF (mean time between failures). The video and signal input is VGA and DVI-D. Option available for HDMI, BNC, Audio w/speaker, Remote Control, or SDI input. The monitor is panel or VESA (100 x 100mm) mount ready. The power supply is an auto-sensing 100 to 240VAC, 50 / 60Hz power input with the option for a 12V / 24V / 48V / 125V DC power input. Options are available for a Resistive or Projected Capacitive multi-touch screen monitor with a USB controller. The rear panel has a power on/off switch and an OSD membrane switch. The OSD menu controls Brightness, Contrast, Phase & Clock, Color, H & V position, and Auto-tune.
