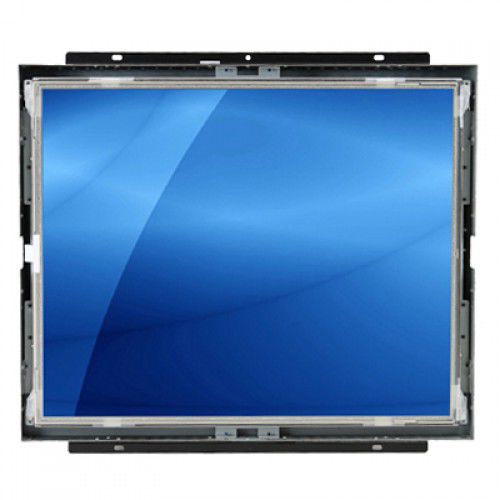

LCD monitor PM-S0170
touchLED backlight17"

LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17"
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17"
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17" - image - 2
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17" - image - 3
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17" - image - 4
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17" - image - 5
LCD monitor - PM-S0170 - Acnodes Corporation - touch / LED backlight / 17" - image - 6
Add to favorites
Compare this product

Characteristics

Technology
LCD, touch, LED backlight
Display size
17"
Resolution
1280 x 1024, VGA
Mounting
panel-mount, open-frame
Other characteristics
HDMI, wide, wide temperature range, rugged
Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

17 inch 1280 x 1024 LED back light 350-nit LCD with VGA port and -30 to 80 degree C wide range working temperature, integrated into a metal open frame monitor enclosure, Option for touch screen, DVI, HDMI or SV+AV input, 700-nits / 1000-nits / 1700-nits panel, motion or light sensor & 24VDC input. Material Heavy duty steel LCD Panel Brightness (cd/m²): 350 Contrast Ratio (typ) : 1000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 337.92 x 270.34 Colors: 16.7M MTBF (hrs): 35,000 Option 700 / 1000 / 1500 nits high brightness panel Option digital signage (stand-alone), MP 480P/1080P Option motion sensor or light sensor Rear panel control power on/off switch OSD membrane switch Audio System 2W speaker x 2 Connectors 1 x PC Audio (stereo headphone jack) 1 x DC power plug Power supply External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter Option for 24V DC power supply Weight 13.23 lb / 6 kg Dimension 13.28"(W) x 13.31"(H) x 2.31"(D) Environmental Storage Temperature: -30°C to 80°C (22°F to 176°F) Relative humidity: 10~90%, non-condensing Certification FCC, CE

Catalogs

PM-S0170
PM-S0170
1 Pages
