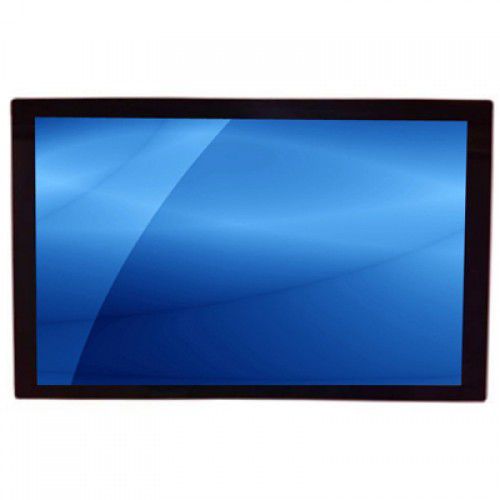

LCD monitor APH8185

touch screenLEDindustrial

The APH8185 is an 18.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed for harsh environments, the display features an IP65-rated aluminum front bezel, an I/O cover for safety and dustproof protection, and a wide working temperature range from -10°C to 55°C. Options are available for a Resistive or Capacitive touch screen and S-Video + Composite video input. LCD Panel Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 409.8 x 230.4 Pixel Pitch (mm): 0.3 x 0.3 Colors: 16.7M, 6 bits + FRC OSD menu control OSD Input: 5-key OSD buttons OSD function: Contrast, Color, Position, Auto-adjustment, Factory Setting Connector 1 x S-Video, Composite (Option) 1 x DC input w/ external power adapter Power supply Input: 12V DC power input with external AC power adapter Consumption: 20 W typical, normal operation Weight 17.64 lb / 8.0 kg Dimension 17.73"(W) x 10.85"(H) x 1.07"(D) Environmental Operating Temperature: -10°C to 55°C Storage Temperature: -30°C to 80°C Relative Humidity: 10~95%, non-condensing Shock: 15G acceleration (11 ms duration) Vibration: 5~500Hz / 1 Grms / 3 Axis
