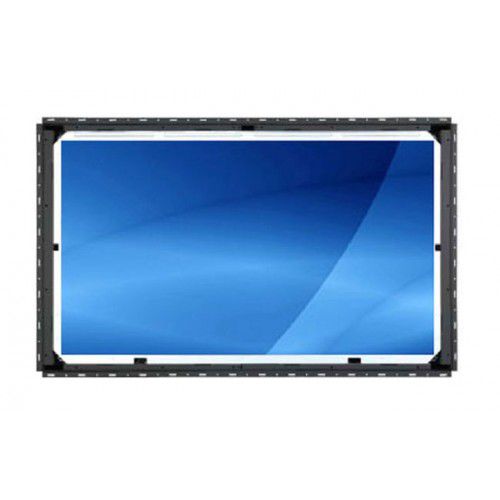

LCD monitor PMW7023

touch screenLED23"

The PMW7023 is a 23" 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements. The PMW7023 is an industrial-grade panel mount monitor designed to satisfy a wide range of industrial, commercial, broadcast, and military requirements. The monitor features a 3840 x 2160 native UHD resolution with 310nit brightness, 1000:1 contrast ratio, 1.07 billion colors, and a viewing angle of 89° vertically and horizontally. The video input incorporates DP 1.2 (3840 x 2160, 60Hz) and HDMI 2.0 (3840 x 2160, 60Hz) / 1.4 (3840 x 2160, 30Hz) video input signals and offers on-screen display allowing users to adjust display characteristics or select viewing options with a touch of a button. To give users the ability of video remote management and transmission for multiple monitors over a network, PMW7017 also offers options for a variety of embedded modules including an HDMI Decoder / Extender, Multi-Monitor OSD Controller, SDI, and Portrait Mode. The internal power supply module includes an external 100/240V AC power adapter with an option for 12V / 24V / 48V / 125V DC power input. Acnodes Corporation has designed the PMW7023 to operate in a wide range of temperatures from 0 - 50°C
