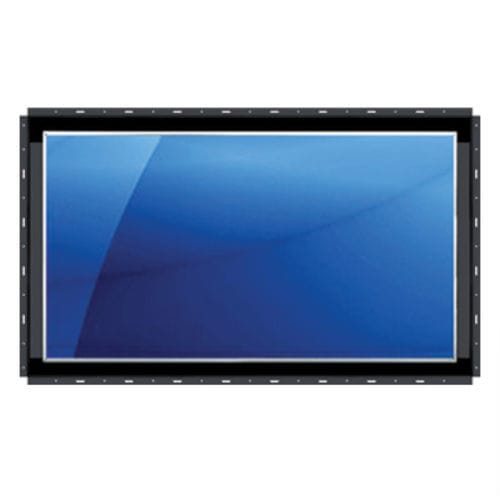

Open frame monitor PMW6315

LCDPCAP capacitive touch screeninfrared touchscreen

Open frame monitor with a 31.5 inch 1920 x 1080 full HD LED-backlit LCD panel, VGA + DVI-D video input, universal or VESA (300mm) mount, and an open frame metal enclosure. Option for Infrared or Projected Capacitive type touchscreen, HDMI / DP / Audio / SDI input, and DC power supply. LCD Panel Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 698.4H x 392.85V Colors: 1.07 Billion, 10-bit MTBF (hrs): 30,000 Rear Panel Power on/off switch OSD membrane switch OSD Menu Control OSD membrane switch control for brightness, contrast, phase & clock, color, H & V position, auto-tune Option for MCS multi-display OSD menu control - RS-232 Power Supply Auto-sensing 100 to 240VAC, 50/60Hz power adapter Consumption: Max. 56W, Standby 9W Option for 12V / 24V / 48V / 125V DC power supply Weight 36.1 lb / 16.4 kg Dimension 30.6”(W) x 3.2"(D) x 18.5"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Safety CE, FCC
