LCD monitor APM5120

touchLEDindustrial

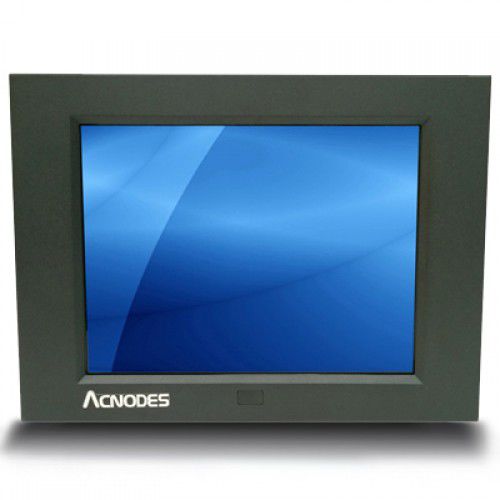

The APM5120 is a 12.1" industrial LCD monitor supporting 800 x 600 resolution and VGA video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5120 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology, additional input modules, and DC power input. Material 8mm aluminum front bezel Rear rugged heavy-duty metal construction LCD Panel Brightness (cd/m²): 450 Contrast Ratio (typ) : 700:1 Colors: 262K Viewing Angle (H/V): 160° x 140° Response Time (ms): 35 Dot Pitch (mm): 0.3075 Display Area (mm): 246H x 184.5V Surface Treatment: Anti-glare Surface Hardness: 3H MTBF (hrs): 50,000 Rear panel control Power on/off switch OSD membrane switch Cable 1 x 6ft VGA cable included 1 x Power adapter included 1 x Power cord included Power supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 14W, Standby 4W Option for 12V / 24V / 48V /125V DC power input Weight 7.7 lb / 3.5 kg Dimension 13.6"(W) x 10.1"(H) x 2.7"(D) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA Compliant
