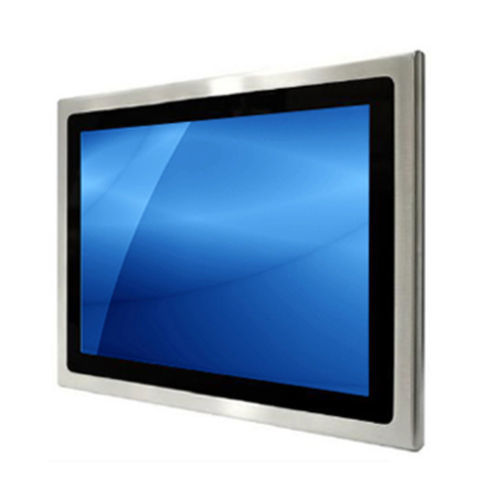

Stainless steel monitor PMN80120

LCDresistive touch screenmulti-touch screen

The PMN80120 is a 12.1" waterproof stainless steel touch screen monitor featuring 1024 x 768 display resolution, 500-nits brightness, VGA video input, and a P-CAP multi-touch screen display. Designed with a full IP66 stainless steel enclosure, the monitor can withstand wide temperatures, water projected from jets, and vibration and shock. Option for 1000-nits high brightness, optical bonding, Resistive touch screen, DVI or HDMI input, and 9 to 36V DC power input. LCD Panel Brightness (cd/m²): 500-nits Contrast Ratio (typ.): 700:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 245.76(H) x 184.32(V) Pixel Pitch (mm): 0.24(H) x 0.24(V) Colors: 16.2M Option for 1000-nit high brightness display Option for optical bonding On-Screen Display OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings Power Supply Input: AC 110~240V, Universal, ±10% Power Consumption: 30W (typ.) Option for 9~36V DC power input Weight 12.1 lb / 5.5 kg Dimension 13.8"(W) x 11.2”(D) x 1.9”(H) Environmental Operating Temperature: 0°C to 60°C Storage Temperature: -30°C to 80°C Relative Humidity: 10-95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 Shock: MIL-STD-810G Method 516.6
