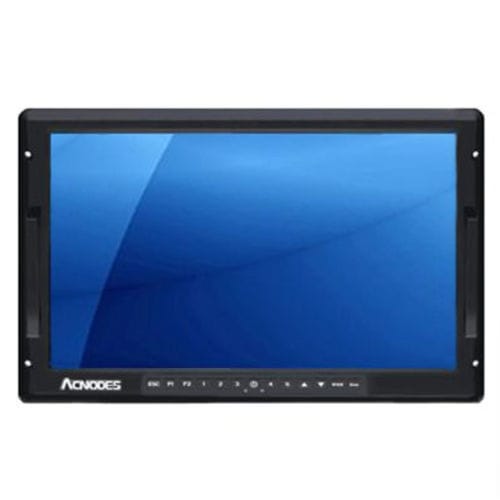

Rack-mount monitor RMW7195

LCDLED backlightindustrial

The RMW7195 is an 8U high 19" rugged military rackmount LCD monitor with an IP65-rated anodized aluminum front bezel in an 8U high rackmount enclosure. The display supports 1440 x 900 widescreen resolution, 1000:1 contrast ratio, 160° x 170° viewing angle, and an active area of 408.24H x 255.15V mm. Designed for harsh environments and military applications, the RMW7195 features an AR protection glass, -10°C to 55°C extended working temperature, and MIL-STD-810G compliance for vibration, shock, and humidity. LCD Panel Brightness (cd/m²): 250, option for 1000-nit Contrast Ratio (typ.) : 1000:1 Viewing Angle (H/V): 160° x 170° Active Area (mm): 408.24H x 255.15V Pixel Pitch (mm): 0.2835H x 0.2835V Colors: 16.7M, 6-bit + FRC LCD Protection AR protective glass Option for ITO glass Front OSD Buttons OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys) LED Indicators: 1 x Power On/Off, 1 x Sleep/Stand by Light Sensor (Option) Dimmer light sensor Optical Bonding (Option) Optical bonding Power Supply DC power with external AC power adapter Power Consumption: 33W (typical) Power Management: VEDA DPMS compliant Option for D38999 9 to 36V DC power input or D38999 AC power input Gross Weight 22.05 lb / 10 kg Dimension 18.90"(W) x 4.72"(D) x 12.99"(H) Environmental Storage Temperature: -30°C to 70°C Operating Humidity: 5% to 95%, non-condensing
