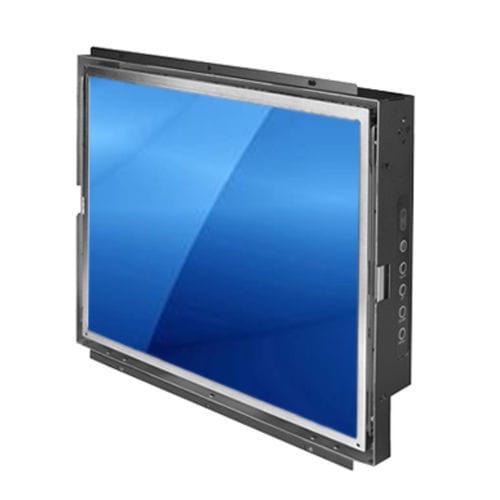

Open frame monitor PMW6190

LCDresistive touch screencapacitive touch screen

The PMW6190 19" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1440 x 900 display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers. Material Heavy-duty steel LCD Panel Brightness (cd/m²): 250-nits Option for 1000-nits high brightness Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 408.24(H) x 255.15(V) Pixel Pitch (mm): 0.284(H) x 0.284(V) Response Time: ≤ 5ms Colors: 16.7M MTBF (hrs): 35,000 LCD Enhancements (Option) Option for EMI Mesh Shielding or UV film On-Screen Display 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box Sensor (Option) Option for light sensor or motion sensor Digital Signage (Option) Option for MP-1080P Power Supply Input: AC power input with built-in power Operation / Power Saving: 22.375 watt, < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN Weight 15.43 lb / 7 kg Dimension 17.91"(W) x 12.91"(H) x 2.56"(D) Environmental Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90% (no condensation) Safety FCC, CE
