LCD monitor APA9080

projected capacitive touchscreenresistive touch screenindustrial

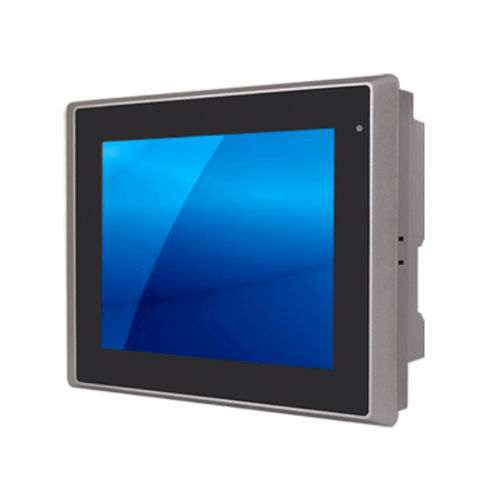

The APA9080 is an 8 inch industrial LCD display supporting 800 x 600 resolution, a Resistive type touch screen, and VGA + DP + DVI-D + HDMI video input. Weighing less than 4 lbs, this compact display features an aluminum die-casting chassis and a flat front bezel with IP66 protection. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (75mm) mounting holes. Options are available for a Projected Capacitive touch screen, 1000-nits high brightness display, speakers, and extended working temperature. Material Solid aluminum die-casting chassis LCD Panel Brightness (cd/m²): 350-nit, option for 1000-nit high brightness Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 140° x 120° Colors: 16.2M MTBF (hrs): 40,000 Rear panel control Power on/off switch OSD membrane switch Connectors 1 x Audio line-in phone jack 1 x 3-pin terminal block for DC power input Option for 1 x 2W speaker Power supply Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 6W Weight 4.0 lb / 1.8 kg Dimension 9.10"(W) x 6.93"(H) x 2.0"(D) Environmental Storage Temperature: -30°C to 70°C Relative Humidity: 10~90% @ 40°C, non-condensing Option for -20°C to 60°C wide operating temperature (for standard brightness) Certification CE/FCC Class A
