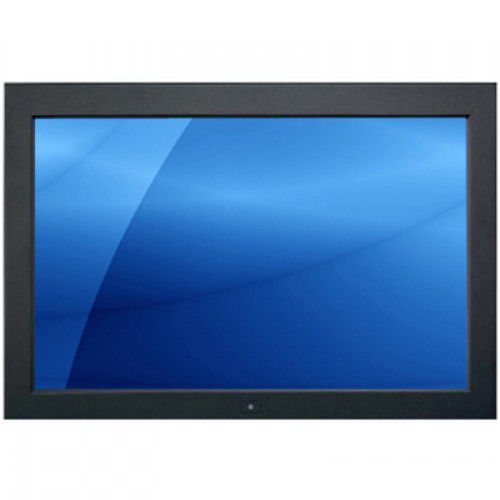

LCD monitor APH9220

touch screenLEDindustrial

The APH9220 is a 21.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH9220 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input. LCD Panel Brightness (cd/m²): 1000 Contrast Ratio (typ.): 5000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Tiem (ms): 5 Dot Pitch (mm): 0.248 Display Area (mm): 476.64H x 268.11V Colors: 16.7M MTBF (hrs): 50,000 Rear panel control Power on/off switch OSD membrane switch Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 32 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input Weight 19.8 lb / 9 kg Dimension 22.7"(W) x 2.3"(D) x 14.5"(H) Environmental Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA Compliant
