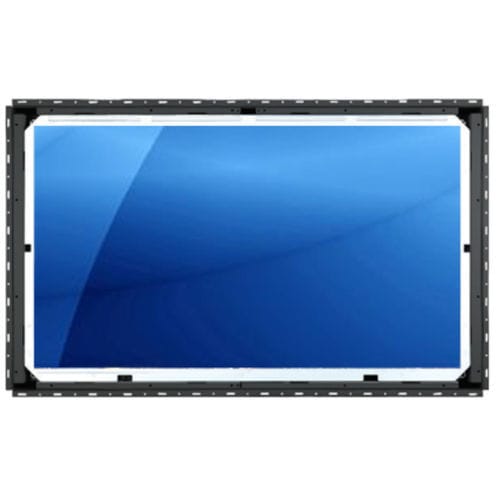

Open frame monitor PMW6230

LCDresistive touch screencapacitive touch screen

Open frame monitor with a 23 inch 1920 x 1080 full HD LED-backlit LCD panel, VGA + DVI-D video input, universal or VESA (100mm) mount, and an open frame metal enclosure. Option for Resistive / Infrared / PCAP type touchscreen, HDMI / DP / Audio / SDI input, and DC power supply. LCD Panel Brightness (cd/m²): 310 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178°x 178° Active Area (mm): 527.04H x 296.46V Colors: 1.07 Billion, 10-bit MTBF (hrs): 30,000 Rear Panel Power on/off switch OSD membrane switch OSD Menu Control OSD membrane switch control for brightness, contrast, phase & clock, color, H & V position, auto-tune Power Supply Auto-sensing 100 to 240VAC, 50/60Hz power adapter Consumption: Max. 45W, Standby 2W Option for 12V / 24V / 48V / 125V DC power supply Weight 14.7 lb / 6.7 kg Dimension 22.90”(W) x 2.6"(D) x 14.20"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Safety CE, FCC
