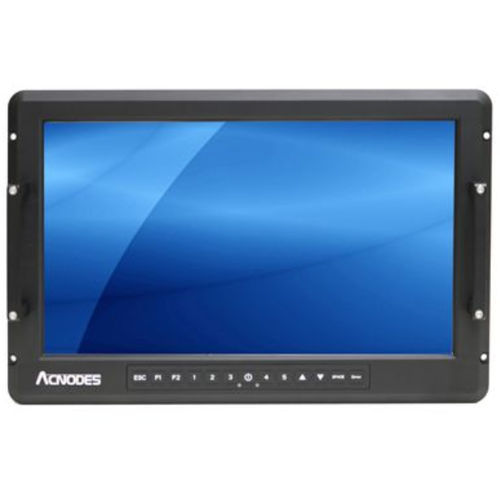

MIL-STD-810G monitor RMW7196

LCD5-wire resistive touch screenLED backlight

The RMW7196 is a rugged 7U high 18.5" rackmount LCD monitor with 1920 x 1080 display resolution, 1000-nits high brightness display, VGA + DVI input, and on-screen display (OSD). Designed for harsh environments and military environments, the 18.5" rackmount display is built with an IP65-rated front bezel, wide operating temperature from -15°C to 55°C, and MIL-STD-810G compliance. The RMW7196 features a modularized design that provides flexible configurations including touch screen technology, ITO glass protection, light sensor, additional video inputs, and D38999 connector. PRODUCT DESCRIPTION RMW7196 is an 18.5-inch military-grade rackmount monitor with full HD 1080P resolution, resistive type touch screen, and IP65 rated front bezel. RMW7196 is certified in MIL-STD-810G in the vibration and shock. RMW7196 constructed of anti-corrosion anodized aluminum housing is compatible with the military-grade standards. The 18.5 inch LCD panel displays a resolution of 1920 x 1080, 1000-nits brightness, 16.7M colors, and 1000:1 contrast ratio on an LED backlight. The touch screen is of 5-wire resistive type. The screen has EMI protection of ITO Glass and an option for ITO Glass Bonded. The connectors include VGA D-Sub 15-pin, DVI-I, and DC power input. The power supply is of wide range 9~36V DC input and 100/220VAC external power adapter. The OSD control buttons are located in the front. The operating temperature withstands from -15°C to 55°C and storage temperature from -30°C to 70°C. MIL-STD-810G certified in vibration and shock.
