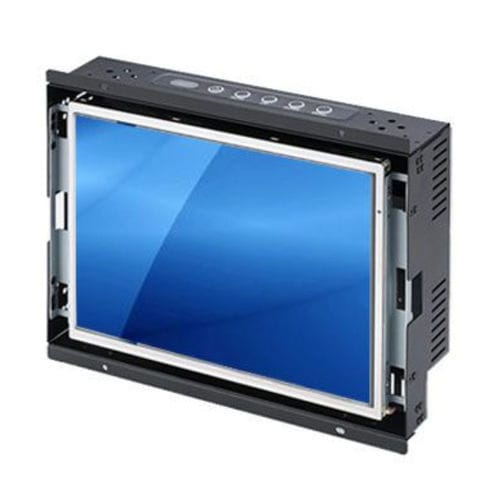

Open-frame monitor PM6120

LCDmulti-touch screenresistive touch screen

The PM6120 is a 12.1-inch open frame LCD monitor supporting an 800 x 600 resolution with a 250-nit LED backlight display. The monitor provides multiple video inputs including VGA, HDMI, DVI, or DP for various applications. Designed with a heavy-duty steel enclosure, the PM6120 is a cost-effective reliable monitor ideal for industrial automation, kiosk information systems, self-service, commercial, and many other POS systems. Options are available for Resistive or Capacitive touch, AG or AR glass, EMI mesh shielding, UV film, 1000-nits high brightness LCD screen, and -30°C to 70°C wide range working temperature. PRODUCT DESCRIPTION The PM6120 is a 12.1-inch open frame monitor supporting 800 x 600 resolution with an LED backlight. The heavy-duty steel monitor supports VGA + HDMI + DVI video input, 12V DC power input with an adapter, and protective environmental features. The LCD panel displays a resolution of 800 x 600 with 250-nits brightness and 600:1 contrast ratio. The LED backlight monitor has 262K colors with a mean time between failures at 35,000 hours. The option is available for a Resistive touch screen (USB), Capacitive touch screen (USB), AG Glass, or AR Glass. The PM6120 sturdy and durable heavy-duty steel protects the open-frame metal construction and contains a 2.16” short depth casing. With a dimension of 11.81"(W) x 10.16"(H) x 2.16"(D) and weight of 7.72 lbs, it can be easily installed with a universal or VESA mount. The monitor can withstand operating temperatures from 32°F to 122°F. The power source is a 12V DC power input with an adapter, offering reliability and high energy.
