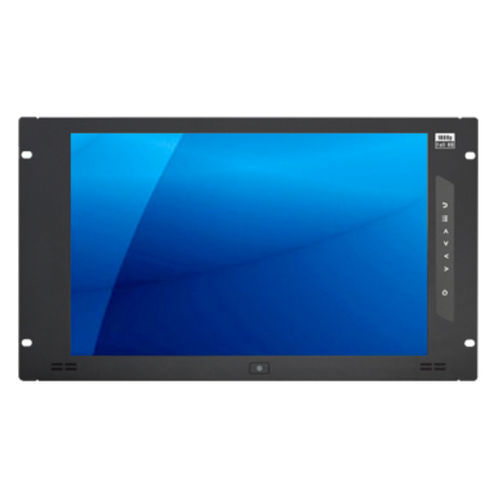

LCD monitor RMW6173

projected capacitive touchscreenmultitouch screenresistive touch screen

The RMW6173 is a 17.3" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1920 x 1080 Full HD resolution, 1000-nits high brightness, 600:1 contrast ratio, and 16.7 million colors. The monitor features VGA + HDMI video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input. Construction Heavy-duty steel LCD panel Brightness (cd/m²): 1000 Contrast Ratio (typ) : 600:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 160° x 140° Response Time (ms): 5.5 Display Area (mm): 381.888H x 214.812V Surface Hardness: 3H MTBF (hrs): 50,000 Front panel control Power on/off switch OSD membrane switch Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 39 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input Casing Color Black (RAL 9005) Weight 9.8 lb / 4.5 kg Dimension Product: 18.9"(W) x 1.9"(D) x 10.5"(H) Packing: 20.8"(W) x 4.9"(D) x 17.8"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA
