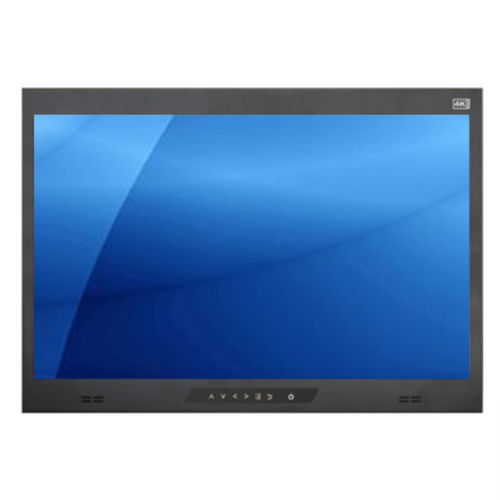

LCD monitor RM9230

projected capacitive touchscreenresistive touch screenLED

Rackmount monitor with a 23.8 inch 3840 x 2160 4K LCD monitor and DP 1.2 + HDMI 1.4 + HDMI 2.0 video input in a 9U rackmount enclosure. Option for Resistive or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, and DC power input. Construction Heavy-duty steel LCD panel Brightness (cd/m²): 310 Contrast Ratio (typ.) : 1000:1 Colors: 1.07 Billion, 10-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.13725 Display Area (mm): 527.04 x 296.46 Surface Hardness: 3H MTBF (hrs): 30,000 Touch Screen (Option) Resistive 1-pt touch screen with USB port Projected Capacitive 10-pt touch screen with USB port Front panel control Power on/off switch OSD membrane switch Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Consumption: Max. 43 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input Mounting 9U high rackmount enclousre VESA (100 x 100mm) mount ready Weight 19.4 lb / 8.8 kg Dimension Product: 21.7"(W) x 2.6"(D) x 15.2"(H) Packing: 20.9"(W) x 25.4"(D) x 6.1"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA
