Stainless steel monitor PMN80100

LCDmultitouch screenprojected capacitive touchscreen

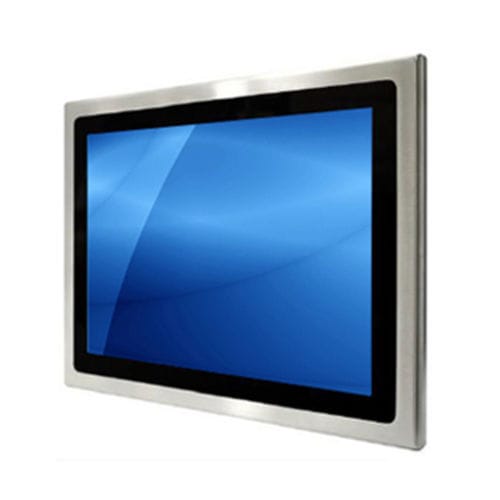

The PMN80100 is a 10.1" waterproof stainless steel touchscreen monitor ideal for pharmaceutical and medical applications, marine applications, food processing, clean rooms, and outdoor environments. With a SUS316 stainless steel housing design, the monitor is more corrosive resistant and has better resistance to salt and chlorides. The PMN80100 supports a 1024 x 800 display resolution, VGA video input, P-cap touch screen with USB, M12 connectors, and rear VESA (75mm) mounting holes. Options are available for a 1000-nits high brightness LCD screen, optical bonding, DVI or HDMI input, panel mount, and 9~36V DC power input. LCD Panel Brightness (cd/m²): 350-nits Contrast Ratio (typ.): 800:1 Viewing Angle (H/V): 170° x 170° Active Area (mm): 200.416(H) x 129.15(V) Colors: 16.7M Option for optical bonding On-Screen Display OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings Power Supply Input: 1 x 12V DC input (w/ external AC/DC adapter) Power Consumption: 15W (typ.) Power Management: VESA DPMS compliant Weight 9.92 lb / 4.5 kg Dimension 11.81”(W) x 8.66”(D) x 2.07”(H) Environmental Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 30%-90%, non-condensing
