LCD monitor PM-S0125
touch screenLED backlight12"

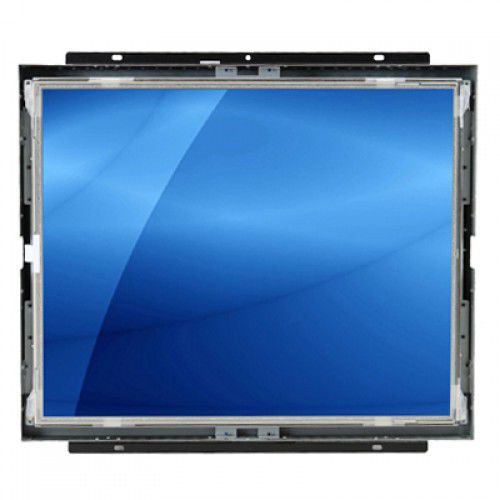

LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12"
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12"
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12" - image - 2
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12" - image - 3
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12" - image - 4
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12" - image - 5
LCD monitor - PM-S0125 - Acnodes Corporation - touch screen / LED backlight / 12" - image - 6
Add to favorites
Compare this product

Characteristics

Technology
LCD, touch screen, LED backlight
Display size
12"
Resolution
1024 x 768, VGA
Mounting
panel-mount, open-frame
Other characteristics
HDMI, wide, wide temperature range, rugged
Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 70 °C
(158 °F)

Description

Panel mount monitor a 12.1 inch 1024 x 768 350-nit LED back light LCD panel with VGA video input port and -30 to 70 degree C wide range working temperature in a rugged metal open frame monitor enclosure. 12.1 inch 1024 x 768 LED back light 350-nit LCD with VGA port and -30 to 70 degree C wide range working temperature, integrated into a metal open frame monitor, Option for touch screen, DVI, HDMI or SV+AV input, 700-nits / 1000-nits panel, motion or light sensor & 24VDC input. PM-S0125 features an open frame monitor of 12.1 inch 1024 X 768 TFT LCD with a wide range operating temperature, VGA video input, is ready to mount, external AC adapter, and has multiple customizable options to add on for extra features and protection. Structure Features With the wide range of operating temperature from -22°F to 158°F (-30°C to 70°C), this heavy-duty steel unit is able to survive during extreme weather in harsh conditions. The relative humidity can withstand 10~90%, non-condensing. With a slim design of 11.81"(W) x 10.16"(H) x 2.17"(D) and weighing at 9.92 lbs, it is easy installations with the front mounting bracket and VESA mounting holes. LCD Display Panel The 12.1 inch displays a maximum resolution of 1024 x 768, 350-nits brightness, 550:1 contrast ratio, 262K colors, mean time between failure at 35,000 hours, and with LED backlight. The multiple customizable options to add on are 700 or 1,000-nits high brightness, digital signage (stand alone) at MP 480P or 1080P, motion sensor or light sensor, resistive, capacitive, or SAW type touch screen with USB port, and protected glass (AR/AR with anti-vandal/AG).
