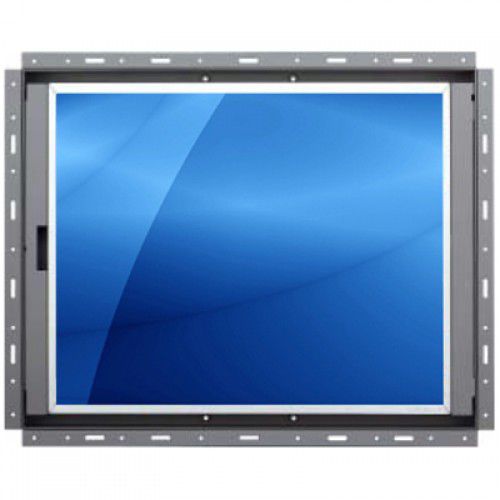

LCD monitor PMH8170

multi-touch screenindustrial17"

The PMH8170 is a 17" high brightness open frame monitor supporting a 1000-nits high brightness display, 1280 x 1024 resolution, and 16.7 million colors that achieve excellent picture quality. Designed with improved energy efficiency and around-the-clock operation, the PMH8170 is designed to meet a wide range of industrial and environmental demands. Material Heavy duty steel LCD Panel Brightness (cd/m²): 1000 Contrast Ratio (typ): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.264 Display Area (mm): 337.92H x 270.33V Surface Treatment: Haze 25%, Hard-coating Surface Hardness; 3H MTBF (hrs): 50,000 Dimming (Option) Auto dimming or Dimming switch with IP54 protection Rear panel control Power on/off switch OSD membrane switch Cable 1 x 6ft VGA cable included 1 x Power adapter 1 x Power cord Power supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 30W, Standby 4W Option for 12V / 24V / 48V / 125V DC power input Weight 10.8 lb / 4.9 kg Dimension 17.2"(W) x 2.3"(D) x 13.9"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance FCC, CE, RoHS, TAA Compliant
