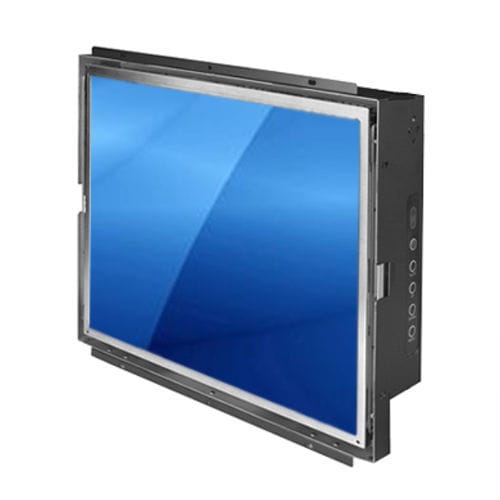

Open-frame monitor PMW6170

LCDresistive touch screencapacitive touch screen

The PMW6170 17" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1920 x 1200 display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers. Material Heavy-duty steel LCD Panel Brightness (cd/m²): 250-nits Contrast Ratio (typ.): 600:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 367.2(H) x 229.5(V) Pixel Pitch (mm): 0.255(H) x 0.255(V) Response Time: ≤ 16ms Colors: 262K MTBF (hrs): 50,000 LCD Enhancements (Option) Option for UV film On-Screen Display 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box Sensor (Option) Option for light sensor or motion sensor Power Supply Input: AC power input with built-in power Operation / Power Saving: 14.15 watt, < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN Weight 13.23 lb / 6 kg Dimension 16.14"(W) x 11.54"(H) x 2.12"(D) Environmental Option for -20°C to 70°C wide operating temperature (LCD Panel specifications will change with wide temperature option) Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90% (no condensation) Safety FCC, CE
