LCD monitor PMW7017

touch screenindustrialfor digital signage

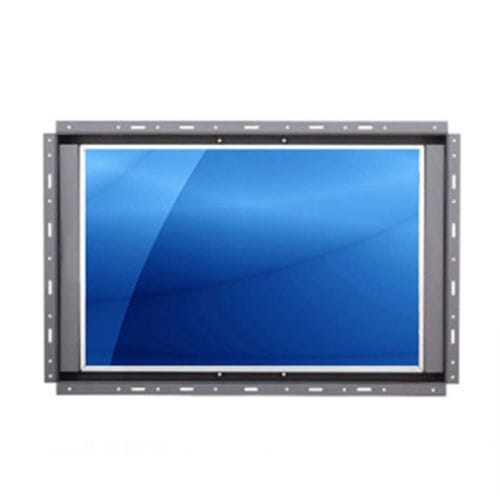

The PMW7017 is a 17.3 " 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements. LCD Panel Brightness (cd/m²): 400 Contrast Ratio (type): 1000:1 Colors; 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.0995 Display Area (mm): 382.12H x 214.94V Surface Hardness: 3H MTBF (hrs): 15,000 Rear Panel Power on/off switch & OSD membrane switch OSD Menu Control OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC Cable 1 x DP cable included 1 x Power adapter included 1 x Power cord included Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 21W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input Weight 7.5 lb / 3.4 kg Dimension 17.2"(W) x 1.9"(D) x 11.4"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA Compliant
