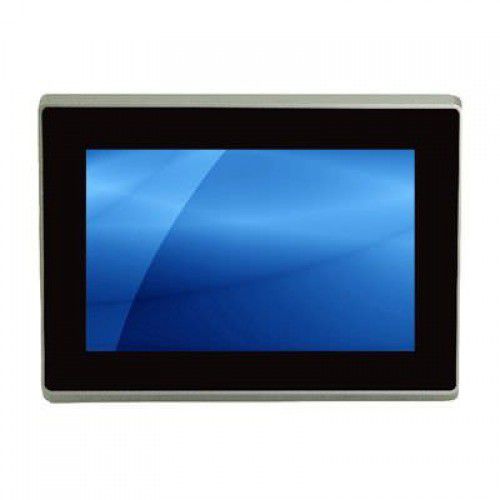

LCD monitor APA9070

resistive touch screen7"800 x 480

The APA9070 is a 7 inch industrial LCD display supporting 800 x 400 resolution, a Resistive type touch screen, and VGA + DP + DVI-D + HDMI video input. Weighing less than 3 lbs, this compact display features an aluminum die-casting chassis and a flat front bezel with IP66 protection. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (75mm) mounting holes. APA9070 presents a panel mount industrial monitor with an aluminum die-casting chassis with IP65 compliant flat front bezel. The IP66 design has complete protection from dust, oil, and other non-corrosive material. It also protects from water projected by a nozzle against enclosure from any direction. The built of the monitor is sturdy and highly protective and is ideal for an HMI display interface in robust and harsh environments. The 7 inch LCD panel displays a resolution of 800 x 480, 350-nits brightness, 400:1 contrast ratio, 262K colors, LED backlight, and 40,000 hours of MTBF (mean time between failures). It contains a resistive type touch screen with a USB port. The option for a capacitive type touch screen with a USB port is available. The slim design of 7.95"(W) x 5.87"(H) x 1.54"(D) and 2.2 lbs can be effortlessly installed using the panel or VESA mount. Its operational temperature can withstand a range from 32°F to 122°F (0°C to 50°C) and relative humidity of 10~90% at 40°C (104°F) non-condensing. The power supply is of 9~36VDC/ 2.4W at 12V. The video input supports VGA and DVI. The connectors include VGA port, DVI port, 3-pin terminal block DC power input, optional Tack switch for VGA/DVI, and optional Line in by phone jack.
