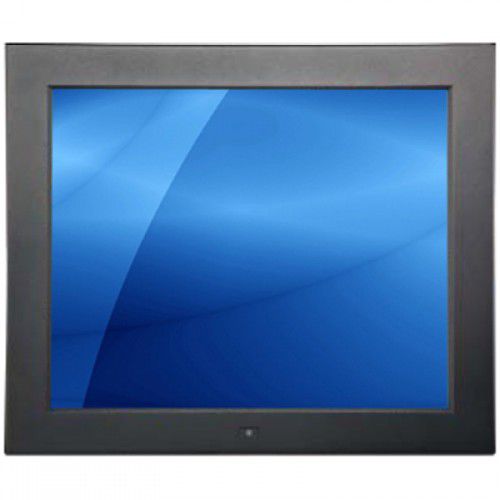

LCD monitor APM5190

touchindustrial19"

The APM5190 is a 19" industrial LCD monitor supporting 1280 x 1024 resolution and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5190 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology, additional input modules, and DC power input. The APM5190 is a 19-inch industrial LCD panel that displays a maximum resolution of 1280 x 1024, 250-nits brightness, 1000:1 contrast ratio, 16.7 million colors, and an active area of 376 x 301mm. It has a CCFL backlight and MTBF (mean time between failures) of 50,000 hours. The option for a resistive or capacitive type touch screen with a USB port is available for added protection and feature. The signal and video inputs are VGA and DVI-D. Option for HDMI, BNC, Audio, 3G/HD/SD-SDI, and remote controller. The power supply is of external auto-sensing 100 to 240VAC, 50/60Hz power adapter with the option for DC power supply. The OSD menu controls brightness, contrast, phase and clock, color, H and V position, and auto-tube. There is an option for MCS multi-display OSD menu control with 1 RSR-232 link port and 2 RJ-45 ports that cascade up to 64 monitors. The 2.5-inch short-depth metal rugged construction is built with an 8mm aluminum front bezel and 3mm protective glass. The option for IP65 / NEMA4 front bezel is available to upgrade for added protection against water and contaminants.
