LCD monitor APM5104

touchLED backlightindustrial

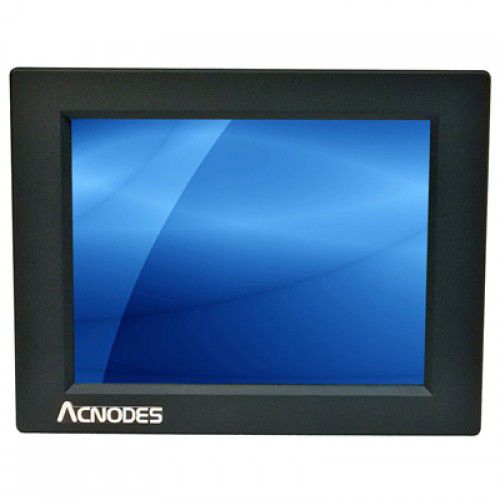

The APM5104 is a 10.4" industrial LCD monitor supporting 800 x 600 resolution and VGA video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5104 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology embedded modules, and DC power input. APM5104 is a 10.4-inch industrial panel mount monitor supporting 800 x 600 resolutions, VGA video input, external 100/220VAC power adapter, anti-vibration, and anti-shock features. The 10.4-inch monitor displays a resolution of 800 x 600, 230-nits brightness, 500:1 contrast ratio, 211 x 158 mm active area, 262K colors, LED backlight, and MTBF (mean time between failures) at 30,000 hours. The option for a resistive or capacitive type touch screen is available to add on. The built is of 6mm aluminum front bezel, 3mm protective glass, and rear rugged heavy-duty metal construction. The option for IP65 / NEMA4 front bezel is available for added protection against liquids and contaminants. The operating temperature can withstand from 32°F to 122°F (0°C to 50°C) and relative humidity of 5~90%, non-condensing. The shock resistance is at 10G acceleration (11 ms duration) and the vibration resistance is at 10~300Hz 0.5G RMS random vibration. The compact dimension is 11.2"(W) x 2.5"(D) x 8.7"(H) and the light weight of 5.7 lb (2.6 kg). The mounting type is a panel or VESA mount. The connectors include a VGA port with the option for HDMI, Audio, 3G-SDI, or MCS multi-display control.
