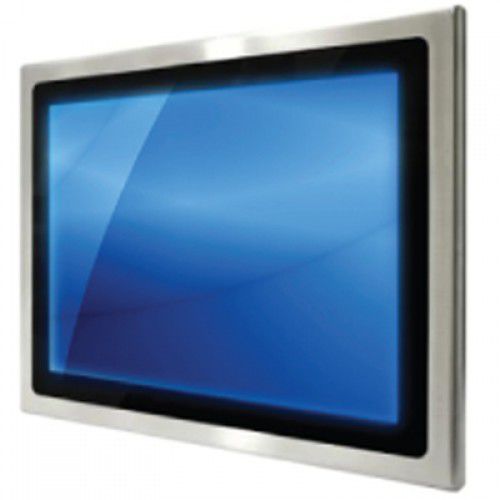

Stainless steel monitor PMN80190

LCD5-wire resistive touch screenindustrial

The PMN80190 is a 19" waterproof stainless steel touchscreen monitor with VGA video input and IP66 rated I/O connectors. Designed for harsh environments, the monitor comes standard with SUS316 anti-corrosive stainless steel and a full IP66-rated housing. It is available with optional PCAP or Resistive touch, 1000-nits high brightness, optical bonding, and HDMI / DVI / BNC inputs. LCD Panel Brightness (cd/m²): 350-nits Contrast Ratio (type): 1000:1 Viewing Angle (H/V): 170° x 160° Colors: 16.7M (6-bits) Option for 1000-nits high brightness display Option for optical bonding On-Screen Display OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings Power Supply Input: 1 x 12V DC Input (w/ external AC/DC adapter) Power Consumption: 35W (typ.) Cable 1 x 1.5m power adapter with power cord 1 x 1.5m VGA cable 1 x 1.5m DVI cable (Optional) 1 x 1.5m BNC cable (Optional) Weight 22 lb / 9.98 kg Dimension 17.95"(W) x 14.96"(H) x 2.13"(D) Mounting VESA (100 x 100mm) mount Environmental Operating Temperature: -15°C to 60°C Operating Humidity: 10~95%, non-condensing
