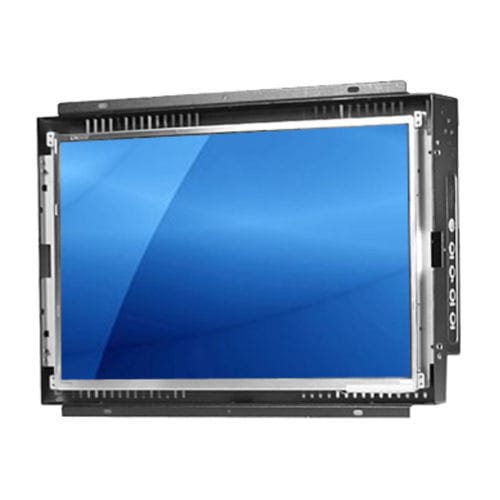

Open-frame monitor PMW6156

LCDresistive touch screencapacitive touch screen

The PMW6156 15.6" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1920 x 1080 FHD display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers. Material Heavy-duty steel LCD Panel Brightness (cd/m²): 250-nits Option for 1000-nits high brightness Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 344.16(H) x193.59(V) Pixel Pitch (mm): / 0.1793(H) x 0.1793(V) Response Time: ≤ 35ms Colors: 16.7M MTBF (hrs): 35,000 LCD Enhancements (Option) Option for UV film Option for AG Glass, AR Glass, or Resistive touch screen On-Screen Display 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box Sensor (Option) Option for light sensor or motion sensor Digital Signage (Option) Option for MP-1080P Power Supply Input: AC power input with built-in power Operation / Power Saving: 12.5 watt, < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN Weight 9.92 lb / 4.5 kg Dimension 15.13"(W) x 10.32"(D) x 2.24"(H) Environmental Option for -10°C to 60°C wide operating temperature (LCD Panel specifications will change with wide temperature option) Safety FCC, CE
