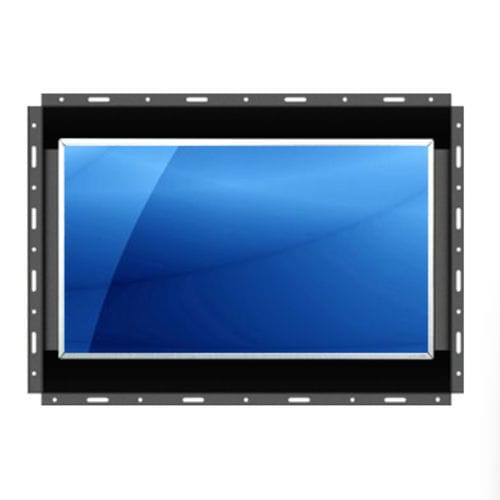

Open frame monitor PMW7013

LCDprojected capacitive touchscreenresistive touch screen

The PMW7013 is a 13.3" 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements. LCD Panel Brightness (cd/m²): 340 Contrast Ratio (typ.): 1500:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178°x 178° Response Time (ms): 29 Dot Pitch (mm): 0.0765 Display Area (mm): 293.76H x 165.24V Surface Treatment: Glare Surface Hardness: 3H Backlight Type: 3H MTBF (hrs): 15,000 Rear Panel Power on/off switch & OSD membrane switch OSD Menu Control OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC Cable 1 x 6ft DP cable included 1 x Power adapter included 1 x Power cord included Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 9W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input Weight 10 lb / 4.5 kg (estimated) Dimension 14"(W) x 2"(D) x 9.9"(H) Environmental Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA Compliant
